Concrete Mixing and Auger Bucket | Haugen
HGN-CB
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends November 30, 2024
DETAILS

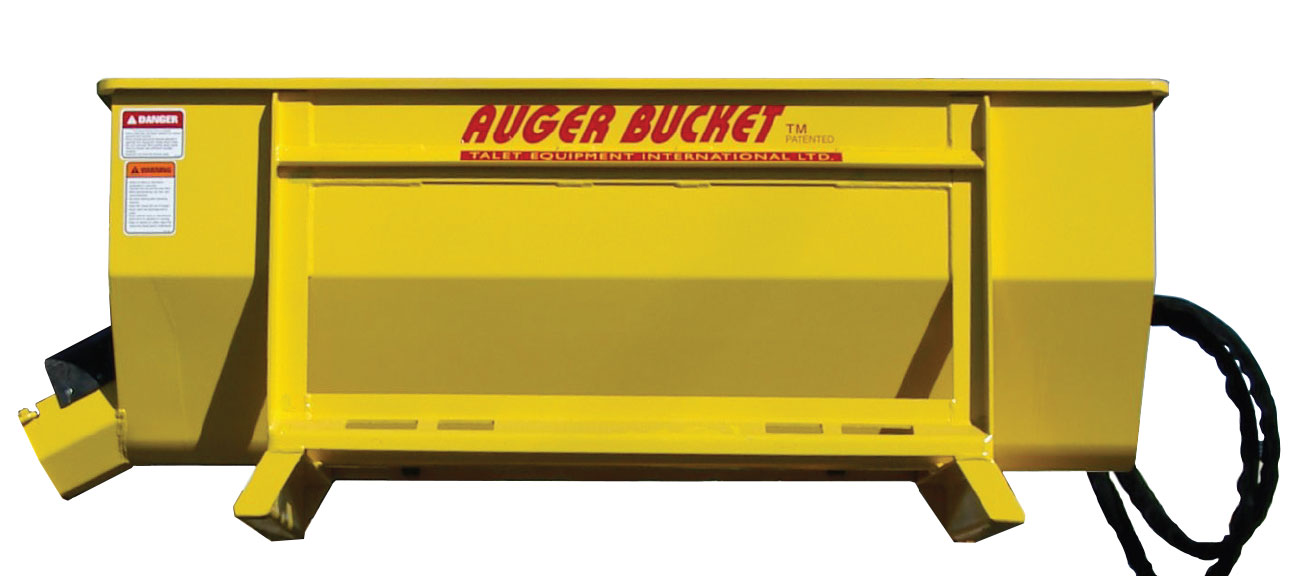

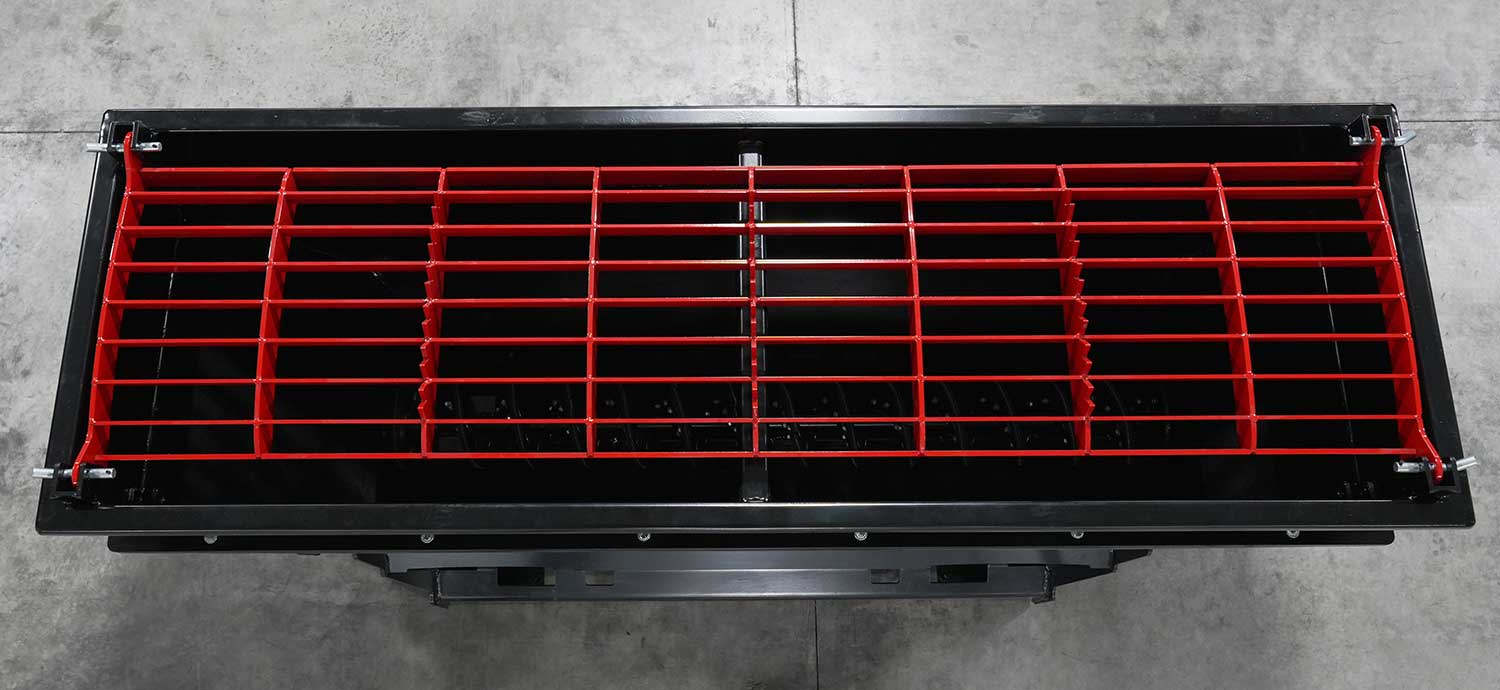

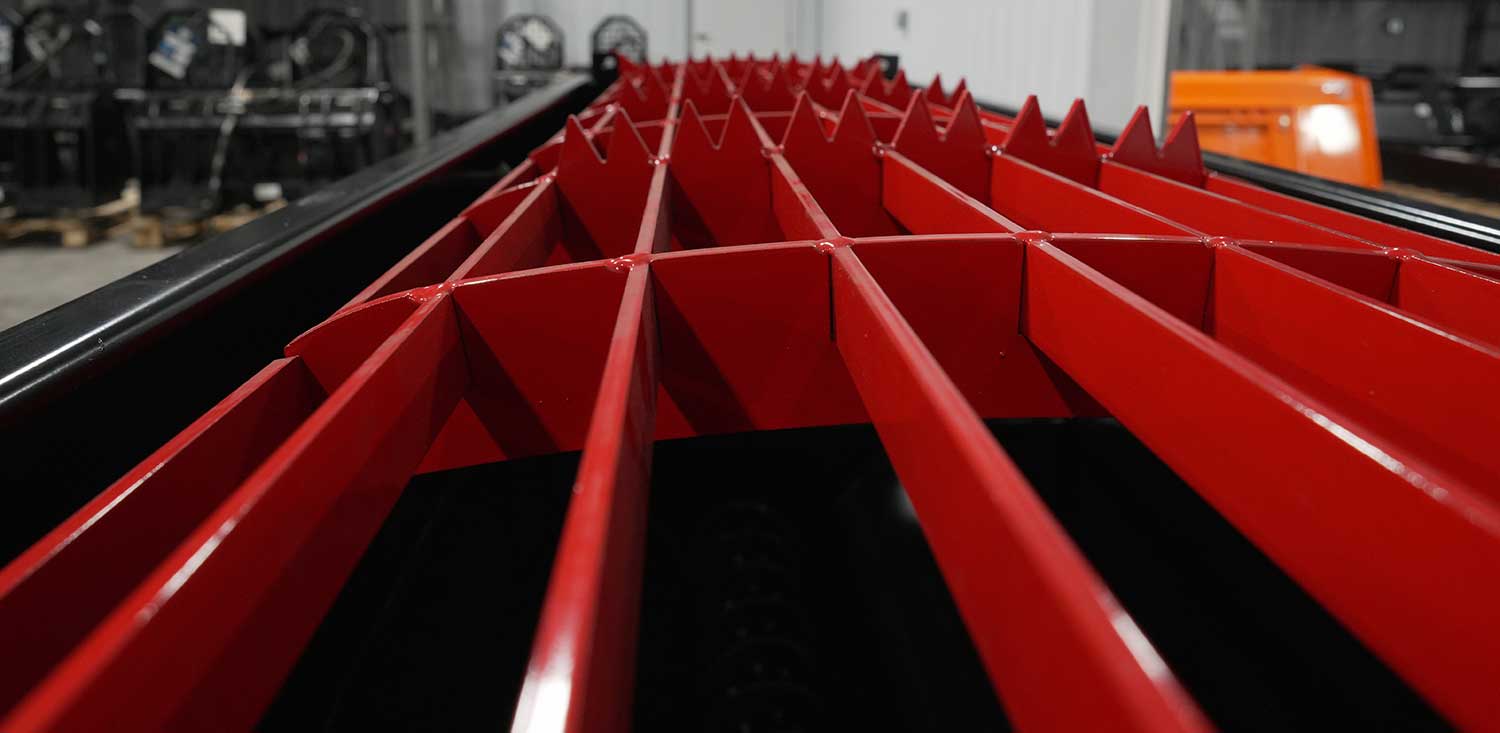

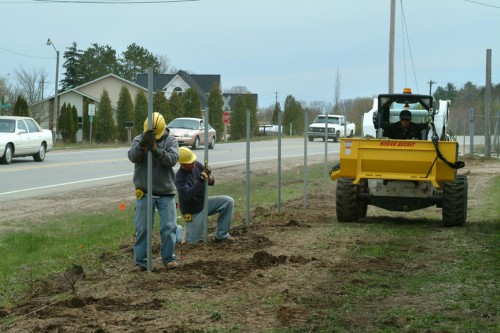

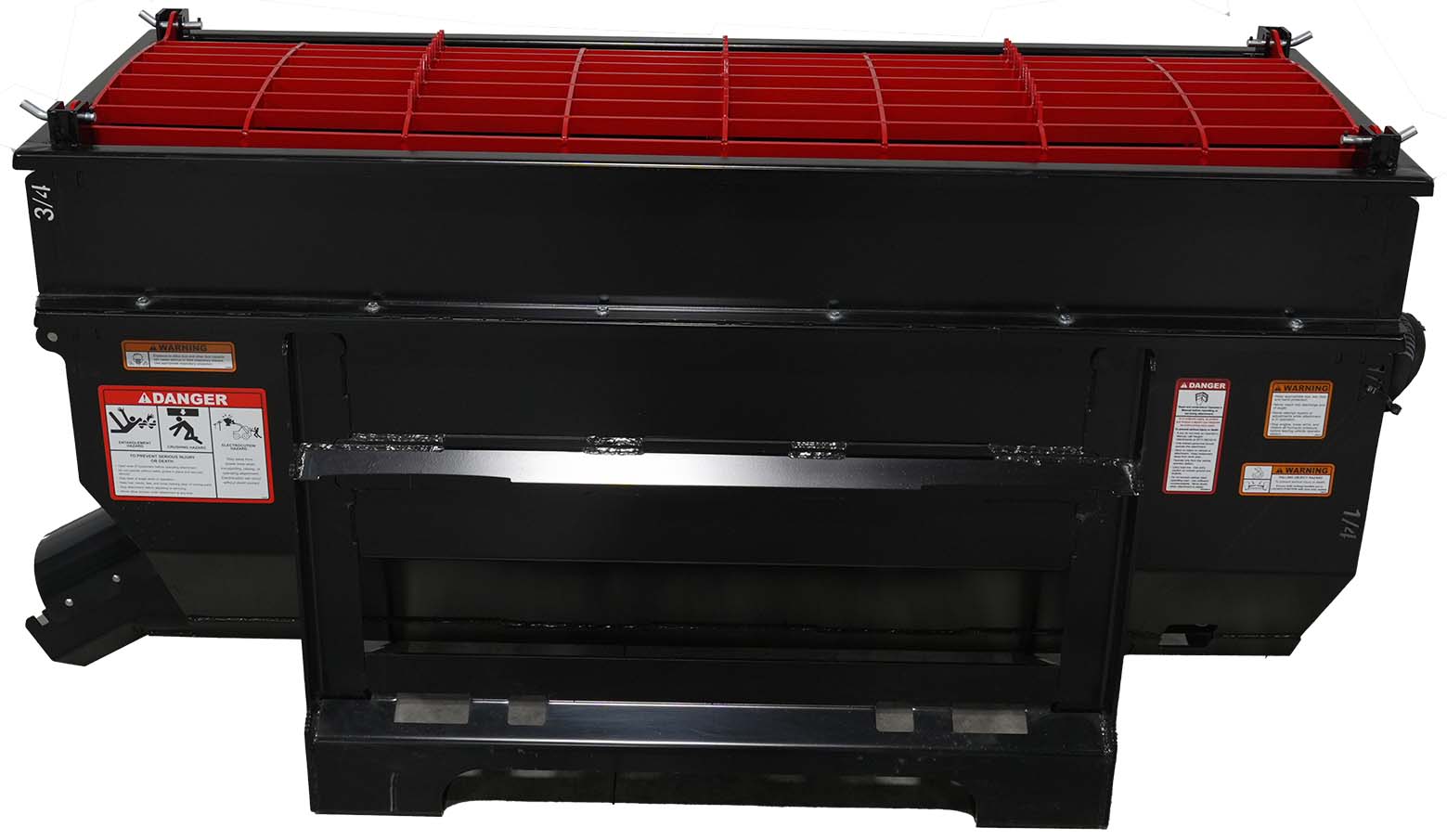

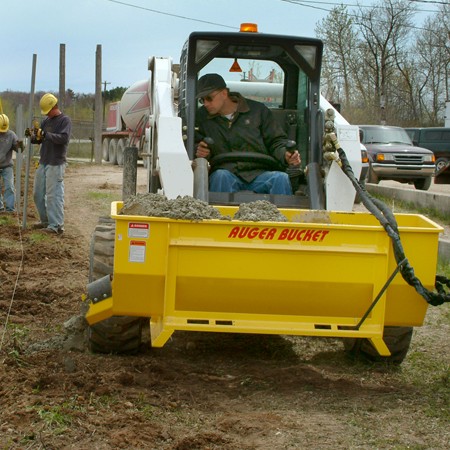

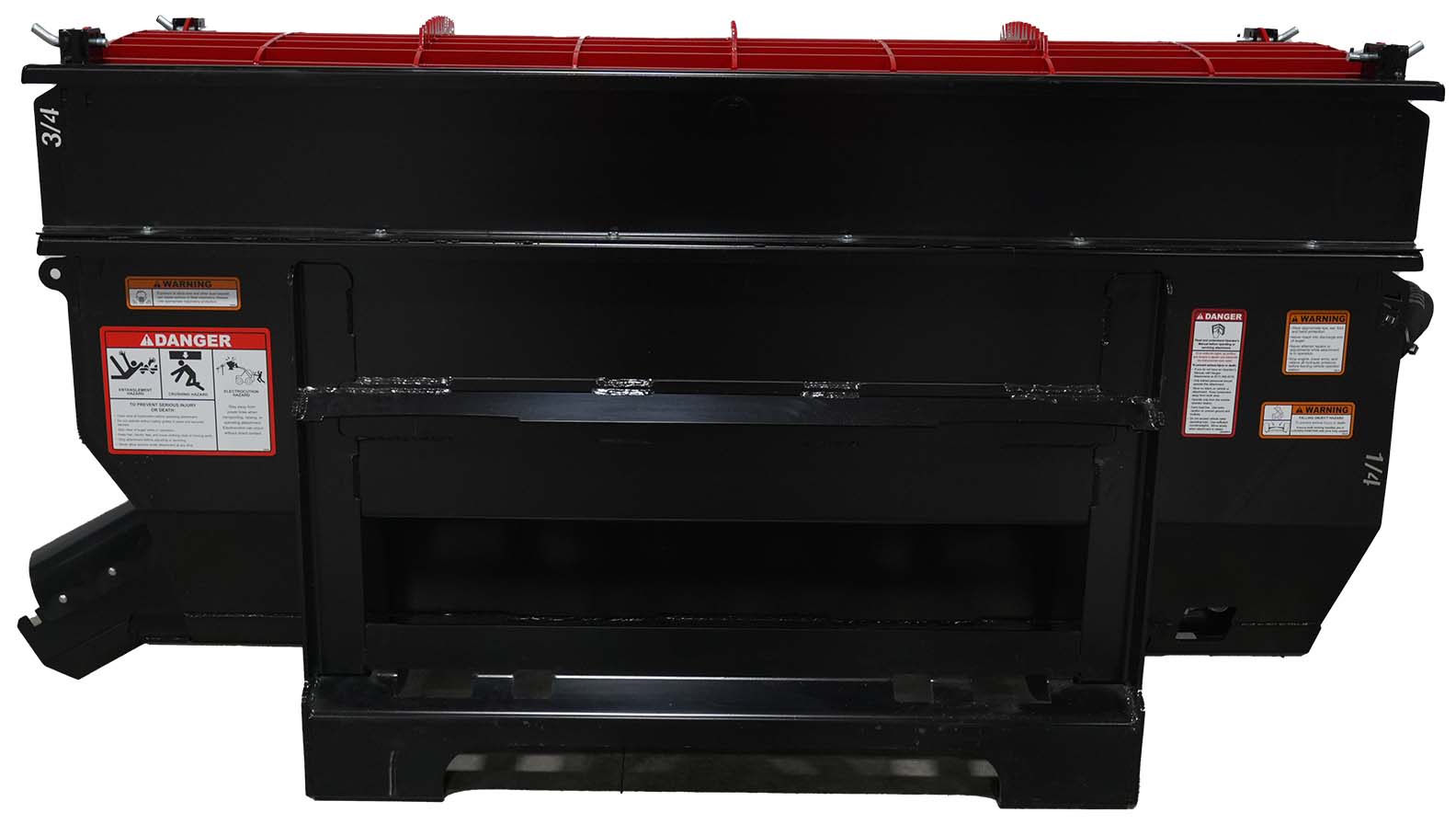

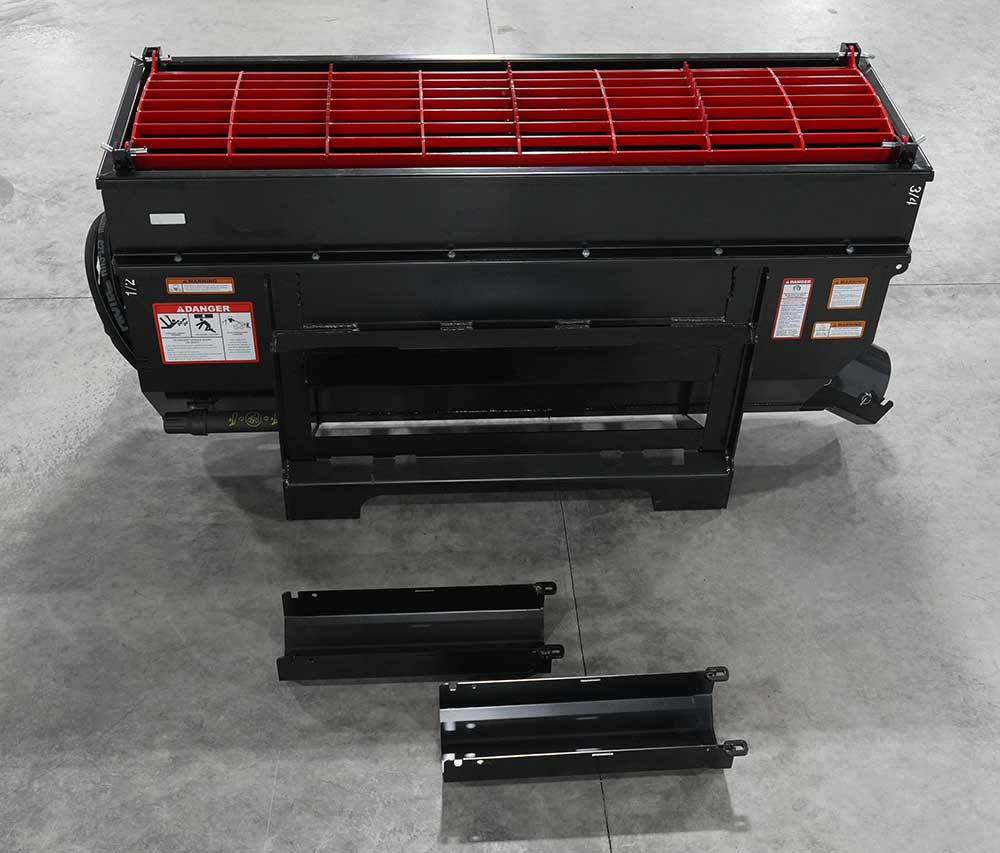

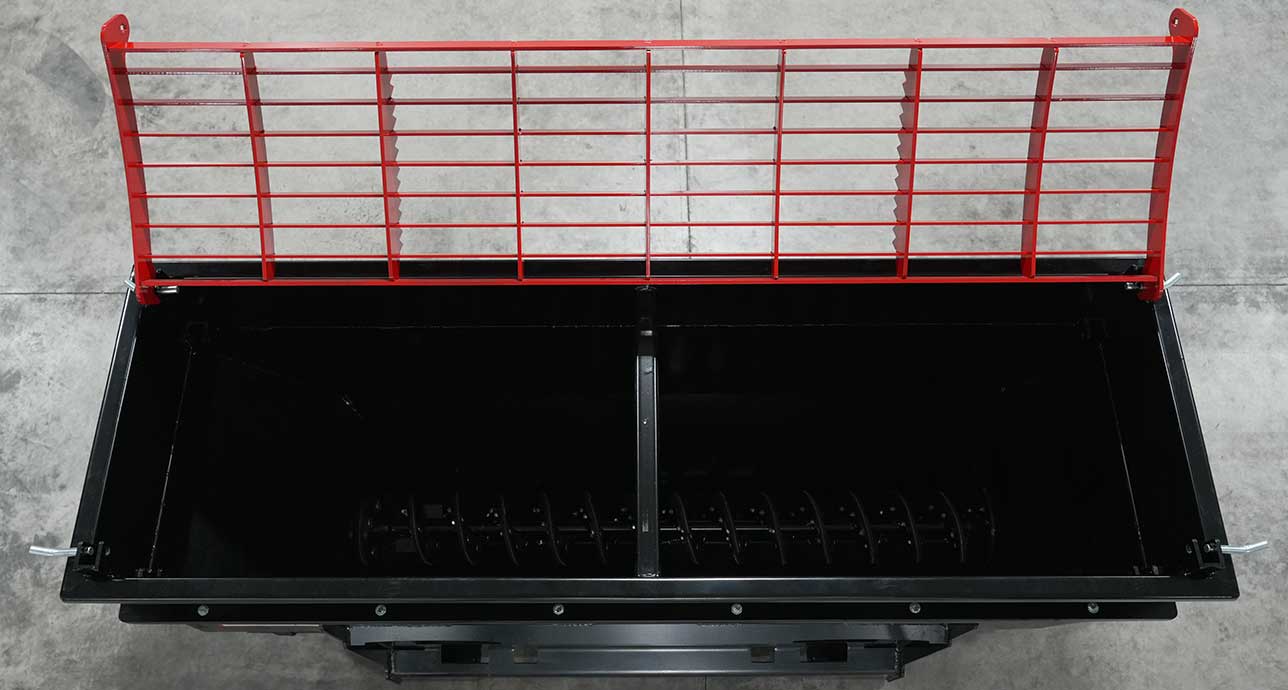

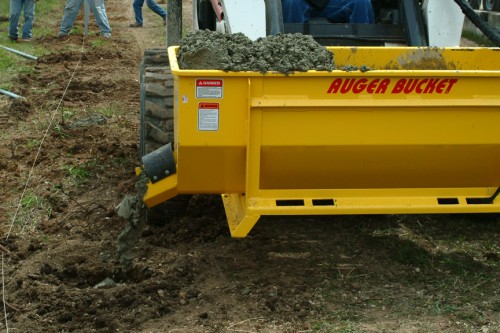

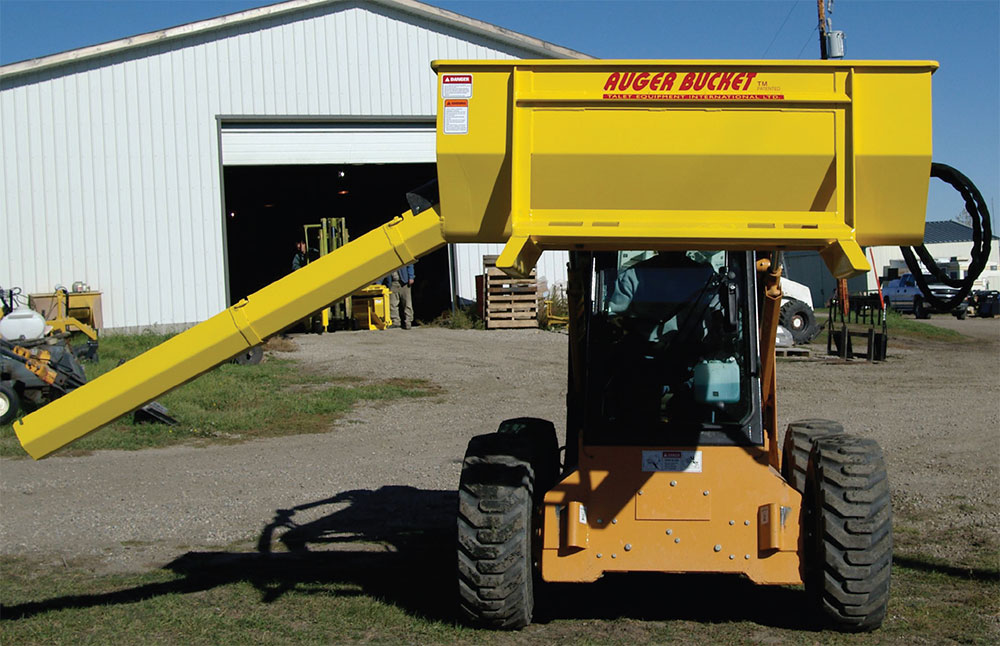

The all new Concrete Mixing and Auger Bucket ™ by Haugen easily mixes and dispenses concrete through a side chute. It can also be used to dispense other material such as asphalt, sand, washed gravel, wildlife feed, and agricultural grains. There is a skid steer quick attach on both sides of the hopper bucket to allow for either left or right hand discharge of material. This unit allows for one person to easily dispense concrete to difficult to reach post holes quickly and without spillage.

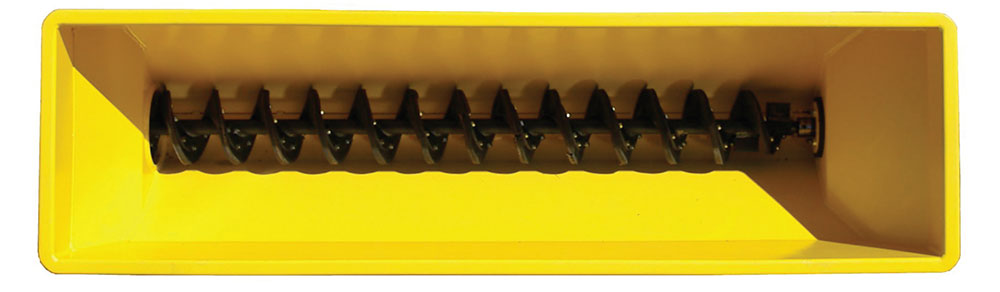

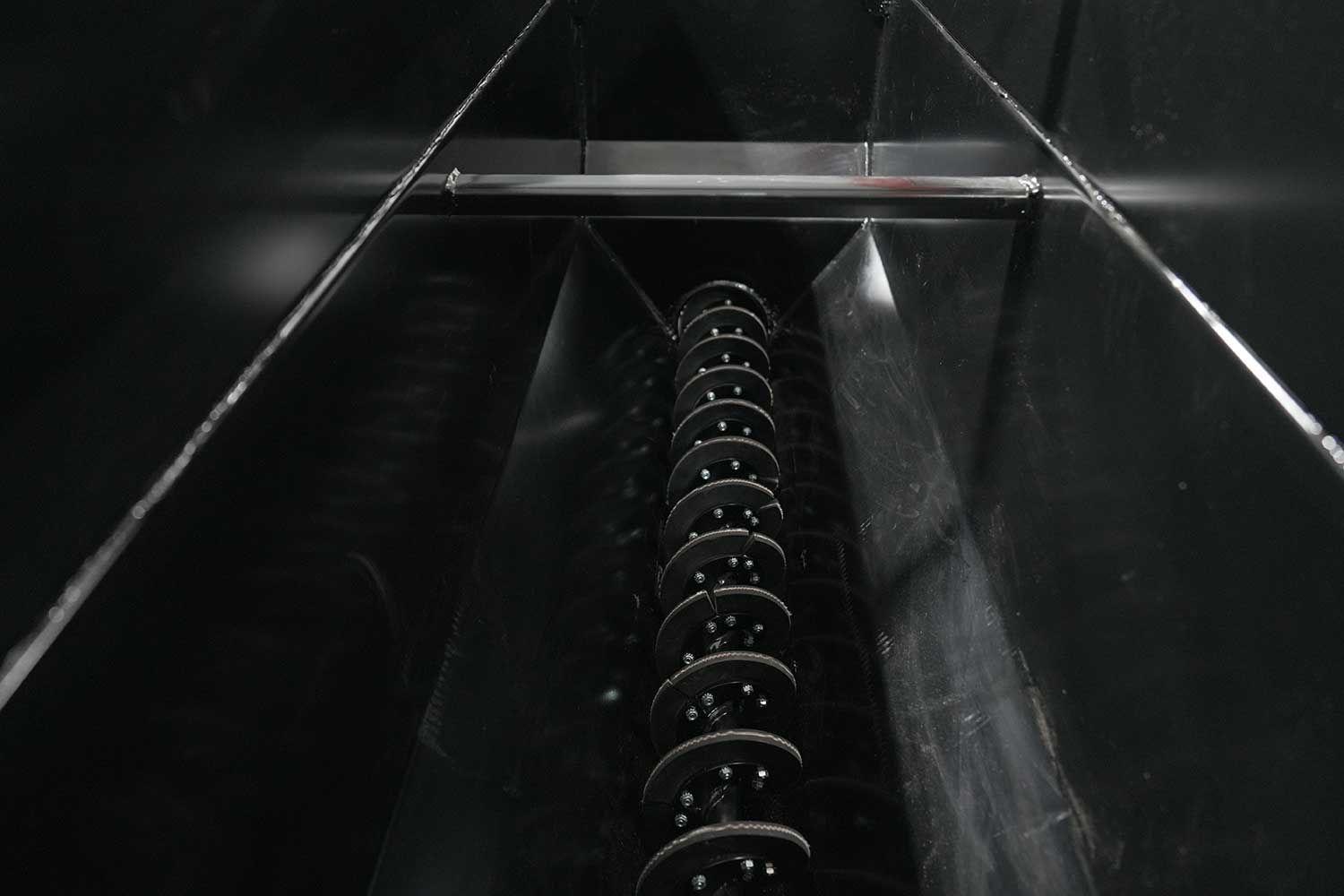

Comes in 2 different models. The standard discharge only auger is a flighted auger that can handle most materials. The second, and most common is the concrete mixing auger. This mixing auger has reinfoced rubber flighting paddles for concrete to be mixed and dispensed directly in the bucket.

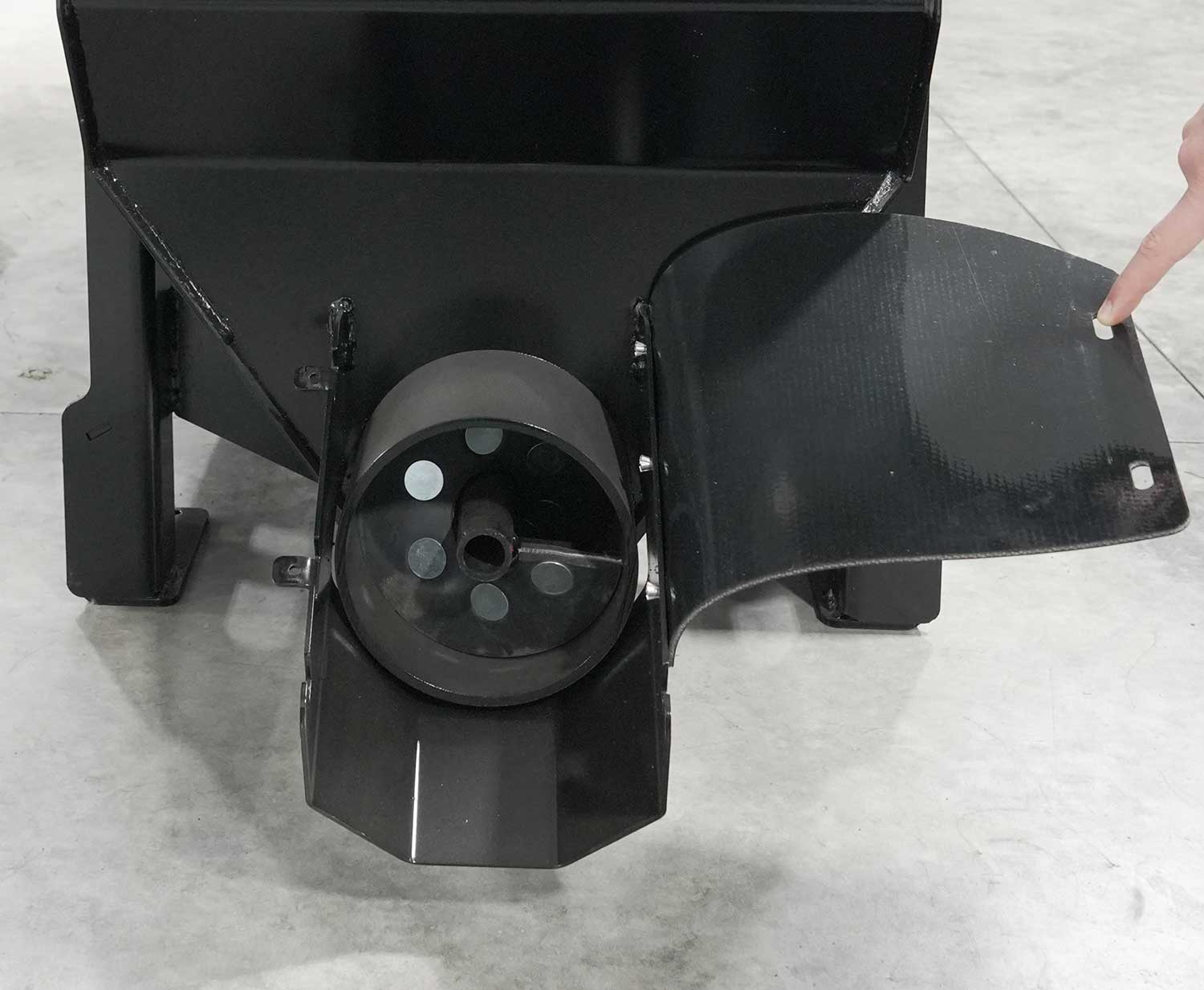

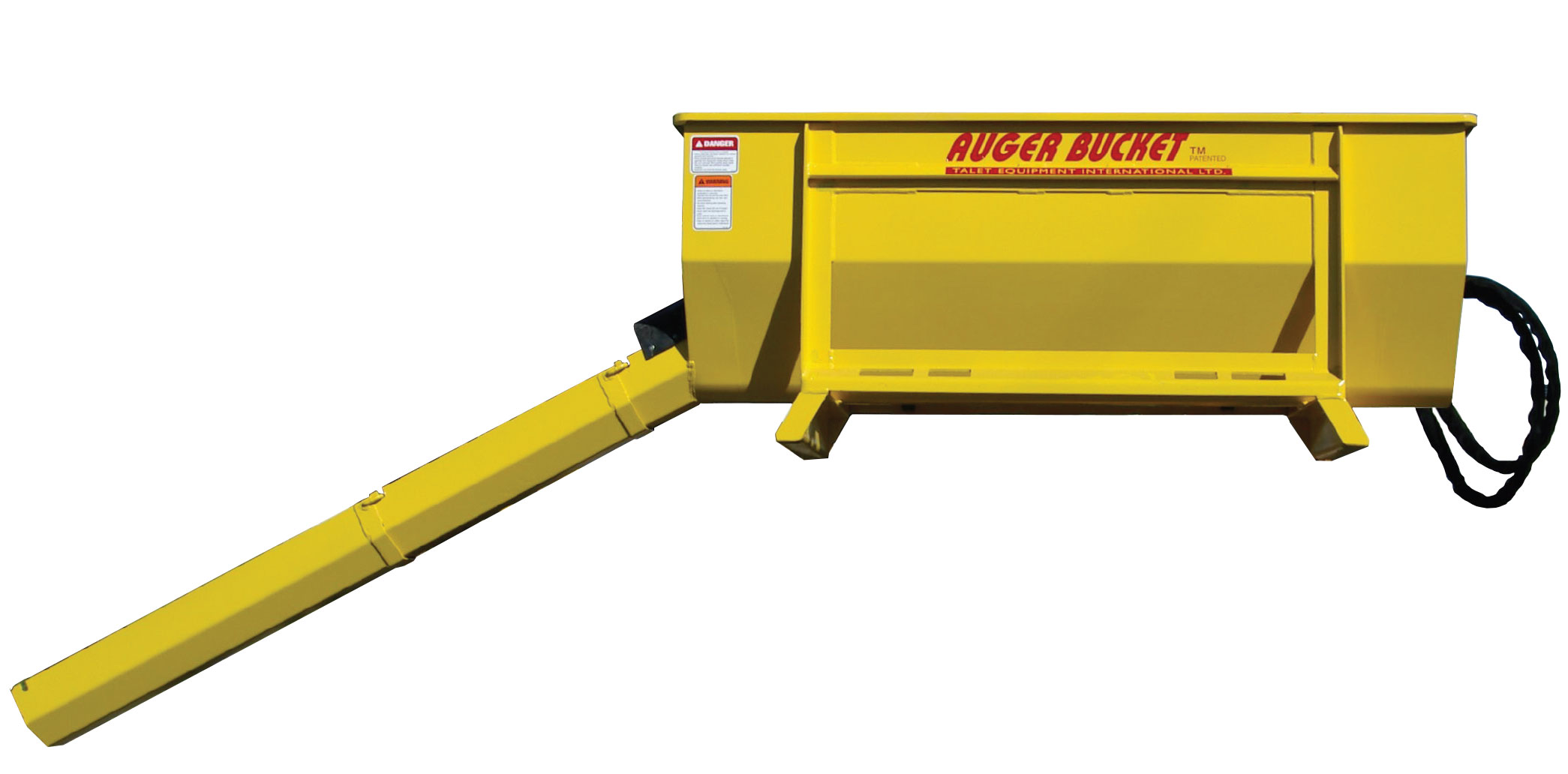

Includes 5' of multi-link chute for greater reach.
Length | 73.5" |
---|---|
Width | 22.5" |
Height | 29.5" |
Weight | 380 lbs. |
Volume | 13 cu. ft. |
Minimum Hydraulic Requirements | 12 GPM |
Auger Length | 61.5" |
Auger Diameter - Without Rubber | 4.0" |
Auger Diameter - With Rubber | 6.5" |
features
- Self loading from loose piles
- Accurate and controlled discharge - 1/2 yd 50 seconds
- Hydraulic direct drive powered by Eaton motors
- Replaceable bolt-on rubber flighting
- Mulit-lik chutes allow for greater reach. 5' of chutes are included with each bucket
