DETAILS

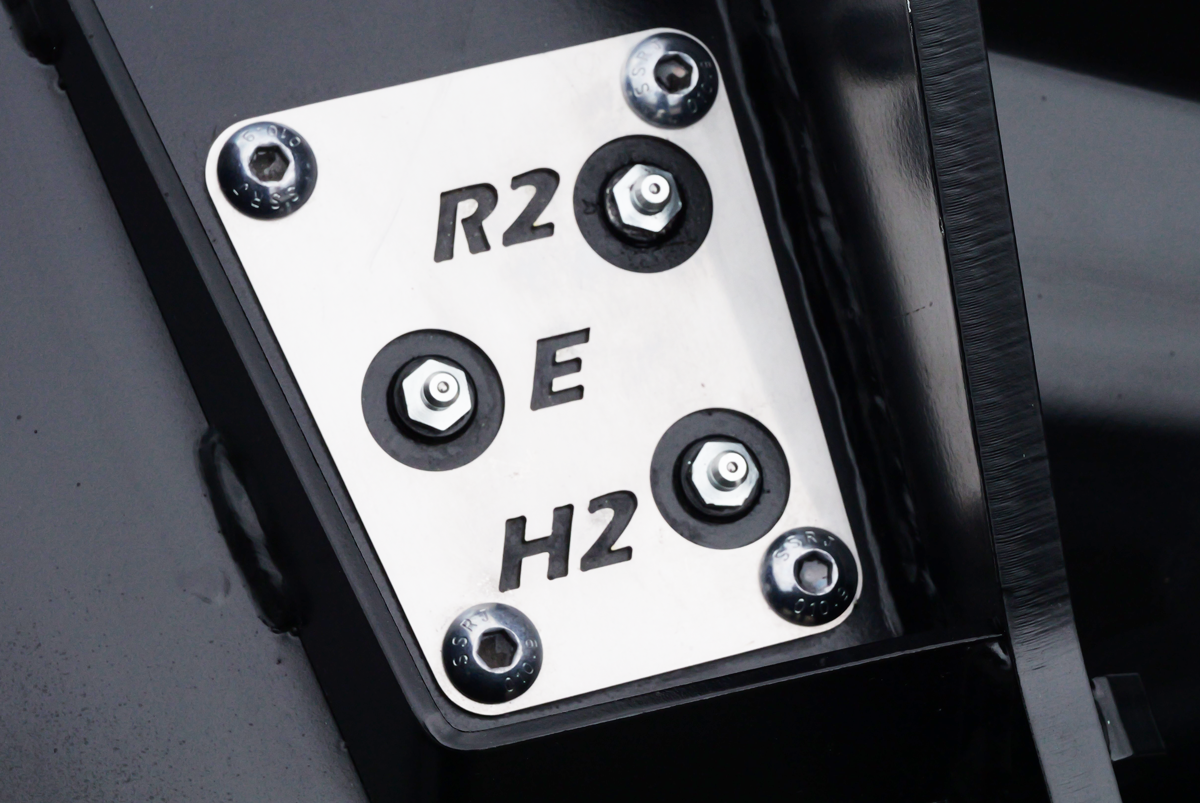

Please Note: Hoses and couplers are not included with this unit. This unit also requires a case drain line. These items can be purchased from a local hydraulics shop.

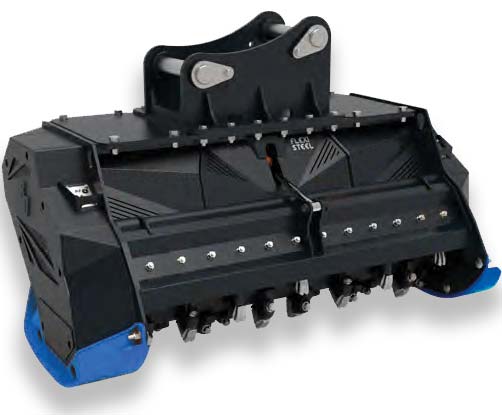

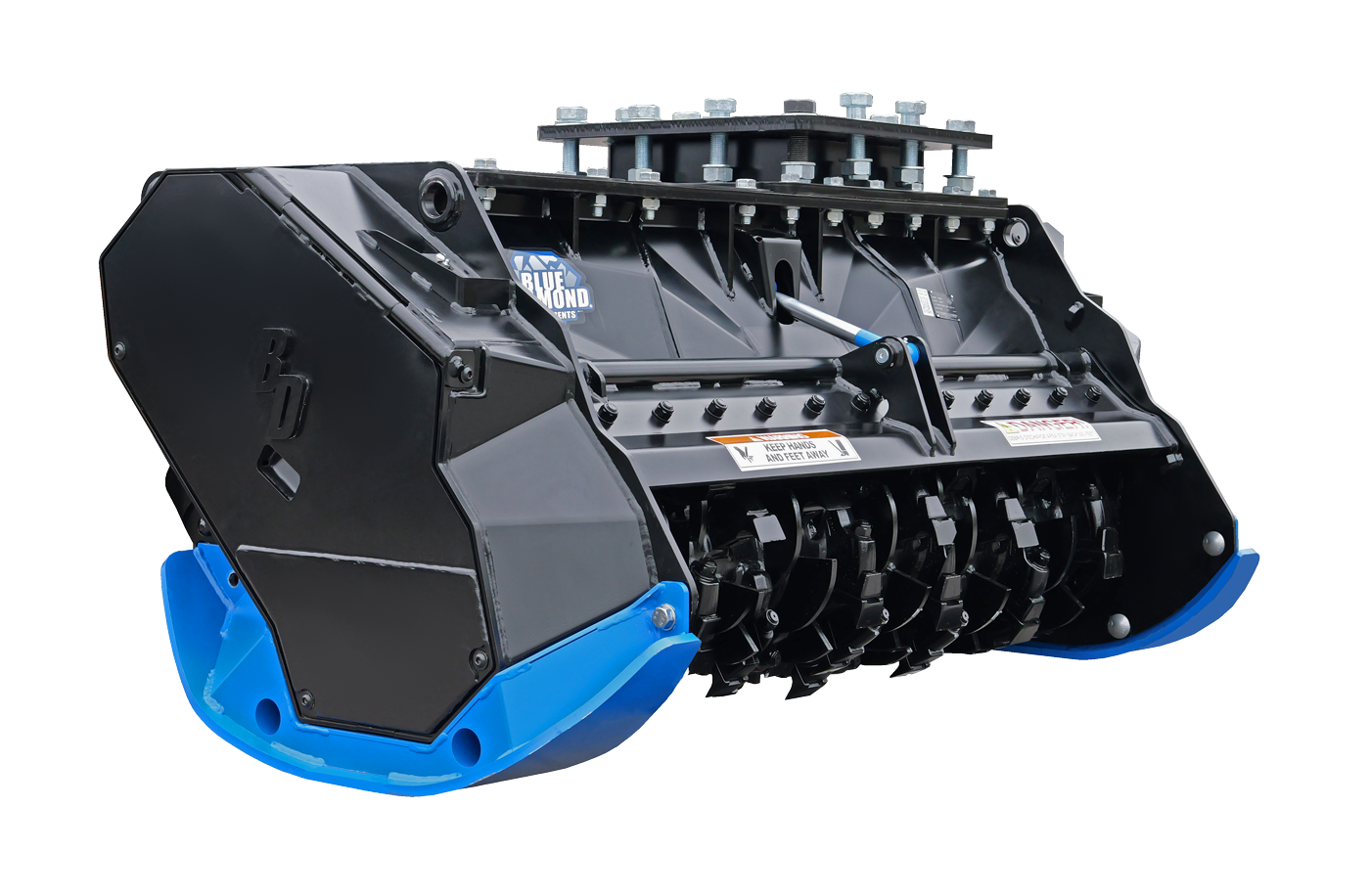

The Blue Diamond SDX Excavator Drum Mulcher is one of the fastest and most efficient tools for turning trees into wood chips in minutes. Built with high-strength steel, this heavy-duty drum mulcher is designed for excavators in the 49K-70K weight range, ensuring durability and performance in the toughest conditions.

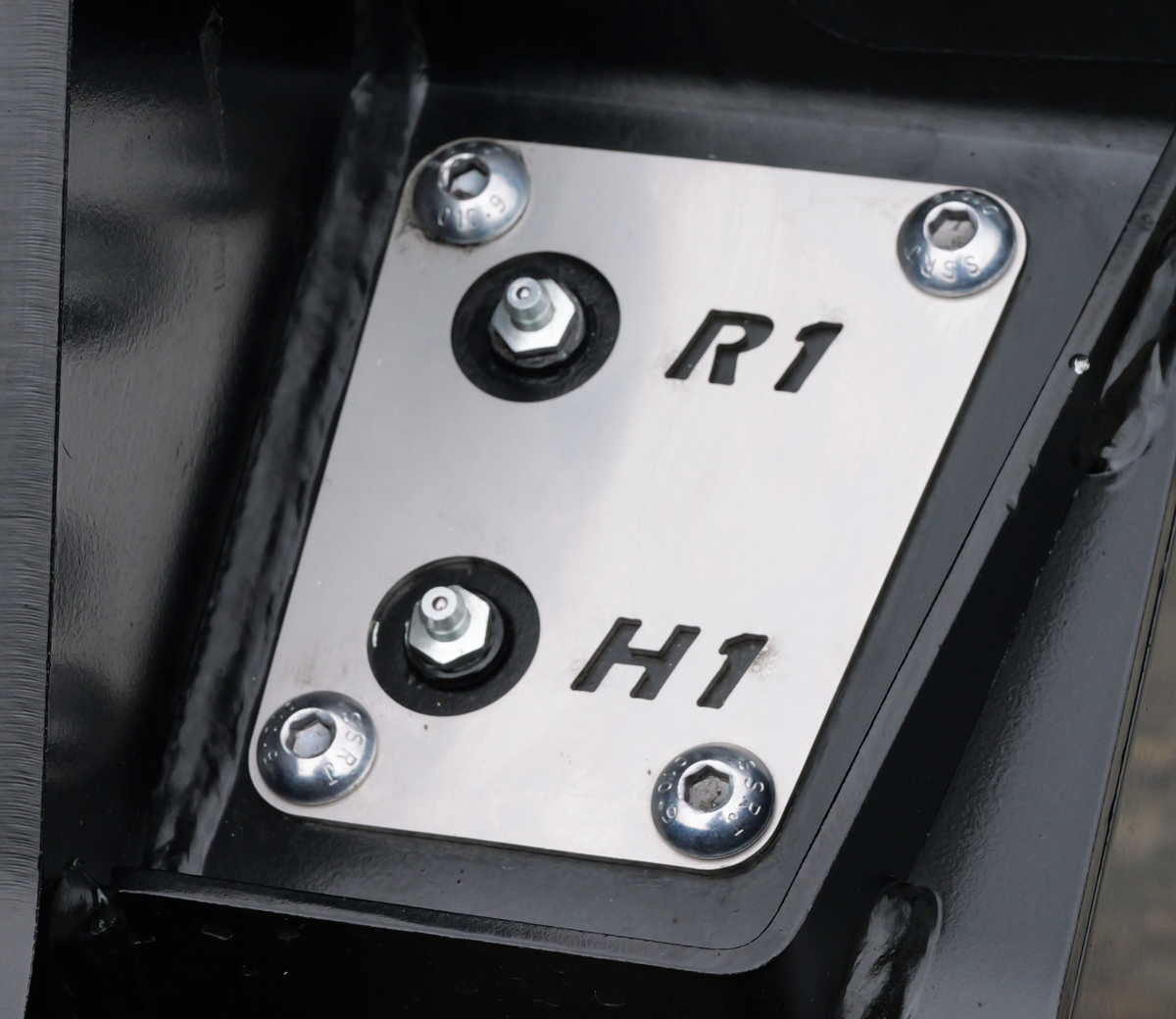

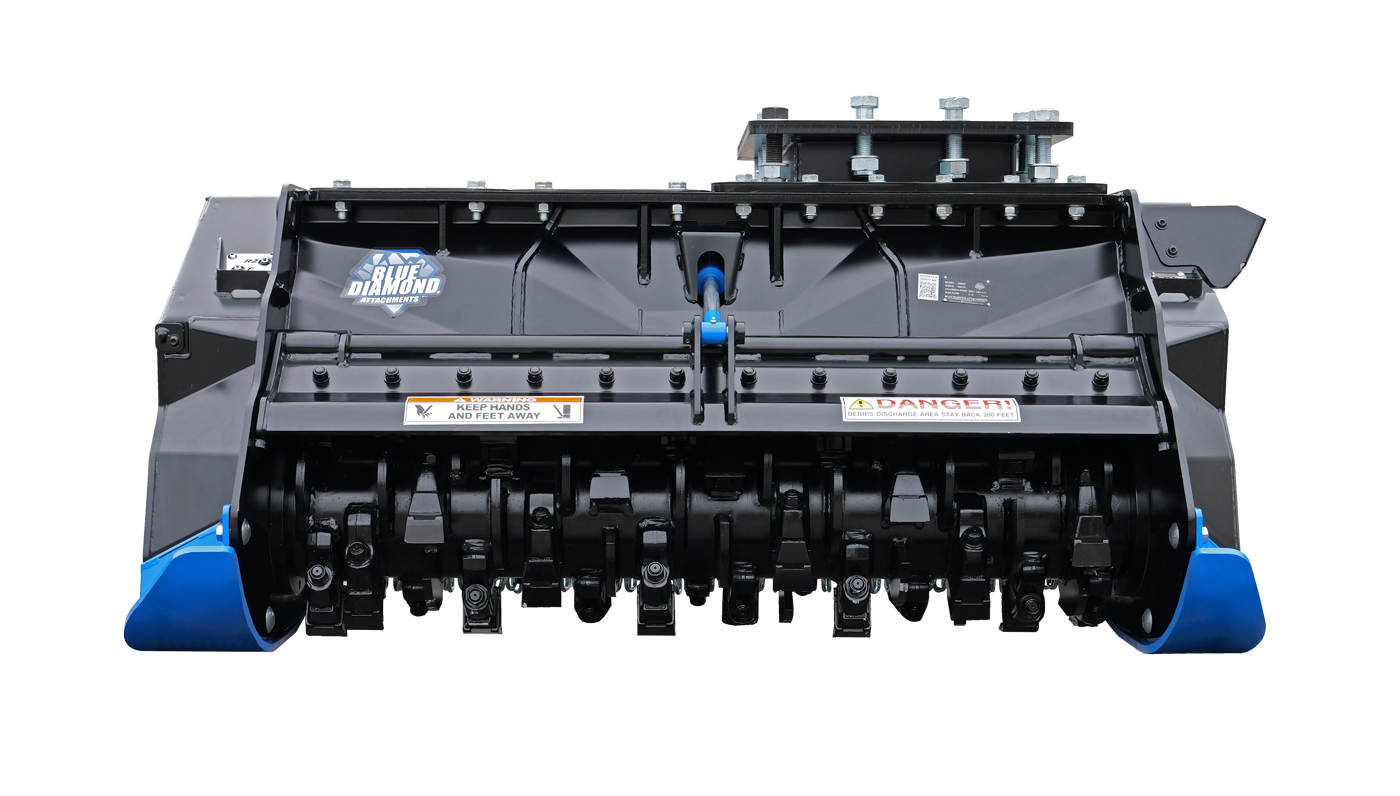

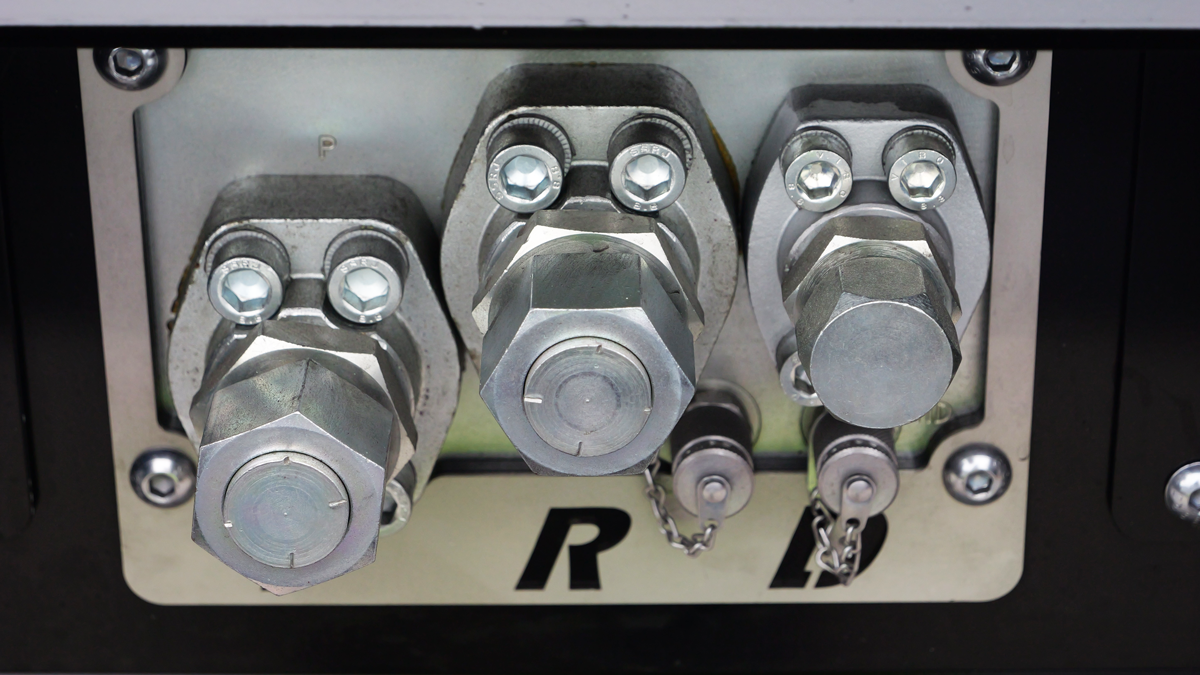

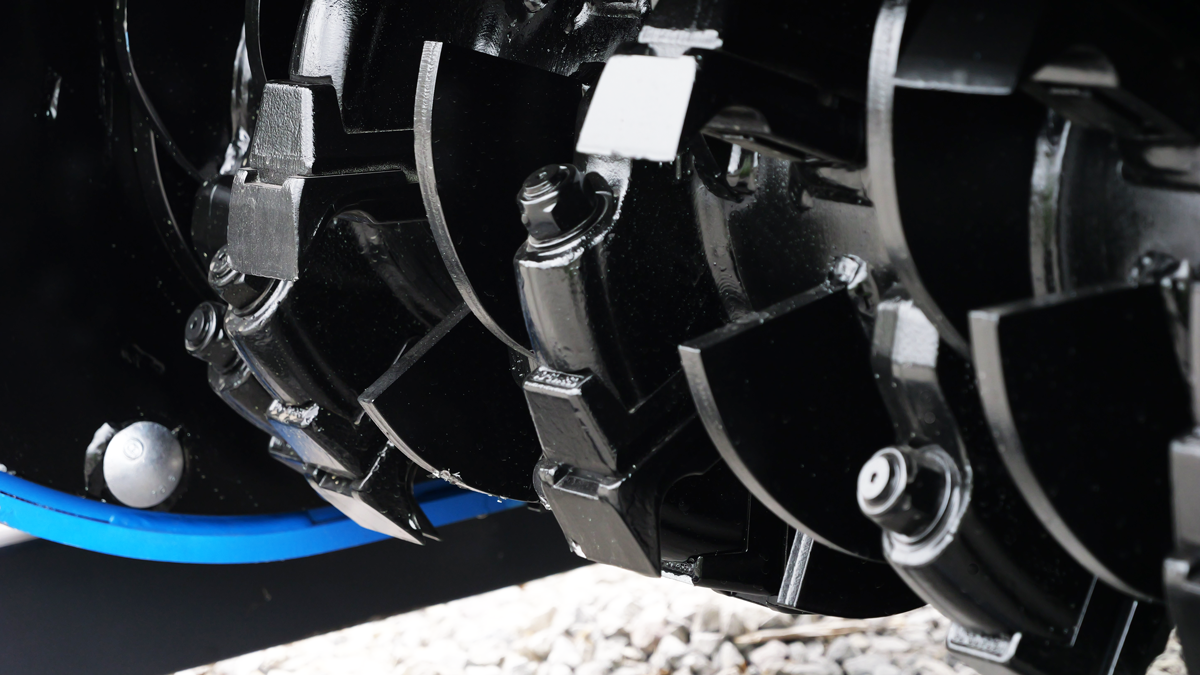

With a 60" working width and the ability to cut trees up to 8 inches in diameter, no task is too challenging. The drum rotors feature fixed teeth arranged in a helical pattern with “p-cut” depth limiters, and optional reversible carbide teeth are available for enhanced durability when working in rocky environments. Routine maintenance is hassle-free, thanks to centralized grease points and hydraulic quick couplers.

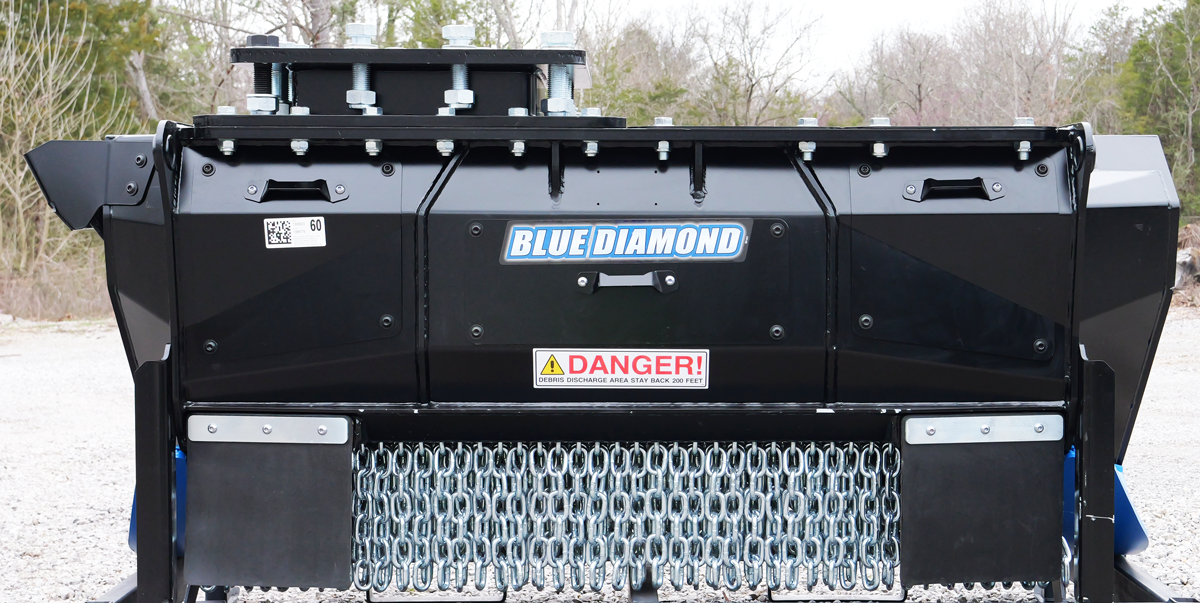

For added safety and efficiency, the SDX Drum Mulcher is equipped with two double rows of chains and rubber side shields, providing optimal debris control while maintaining smooth material flow.
| Model | Required Flow | Motor Size | Weight |
|---|---|---|---|
| 60" SDX Excavator Drum Mulcher, fits 49K-70K machines | 45-58 GPM | 80cc - 115cc | 3,000 lbs |
features
- Designed for excavators weighing 49,000 to 70,000 lbs
- Available with a 60" cutting width
- Equipped with a variable displacement motor (80-115cc Bosch Rexroth)
- Optimal hydraulic flow: 45-58 GPM
- Capable of cutting up to 8" diameter material
- Required operating pressure: 4,000-5,500 PSI
- Chain curtain for reduced debris discharge

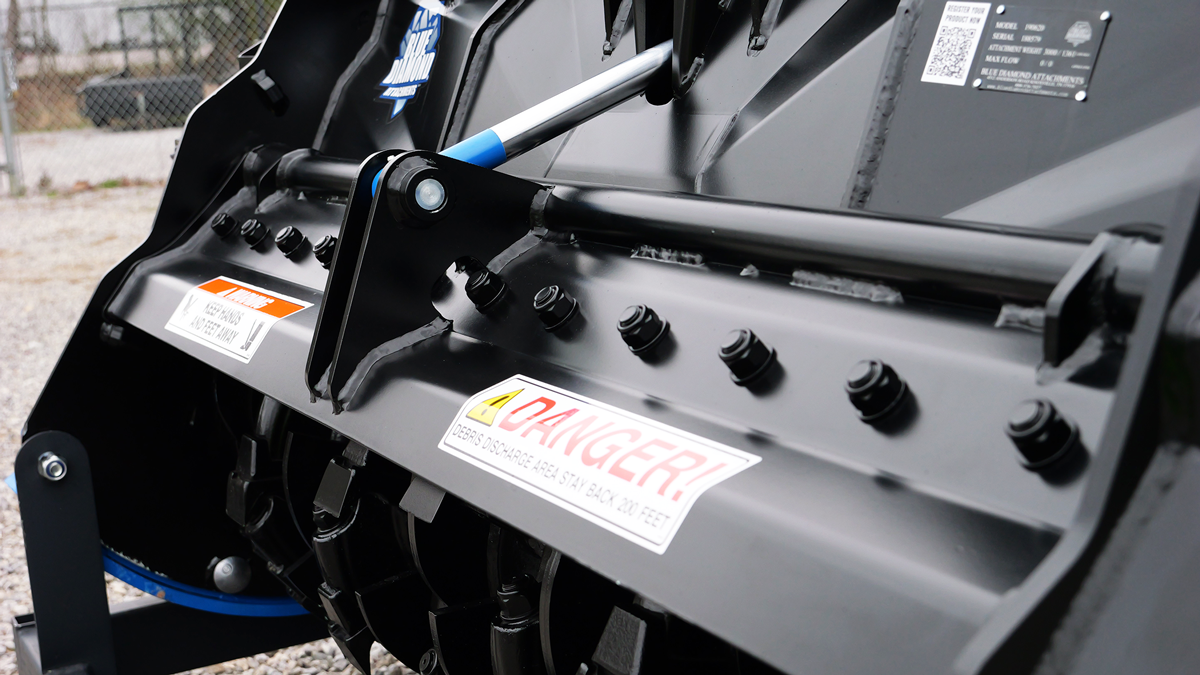

- Hydraulic front cover for enhanced control
- Made in the USA
- 1 year warranty
