Quarry Conveyor Bucket | Berlon
Product ID:
BRLN-BCKT-CVB
BRLN-BCKT-CVB
Availability:
limited quantity available
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends November 30, 2024
$2,857.00$2,714.15
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
Business financing:
DETAILS

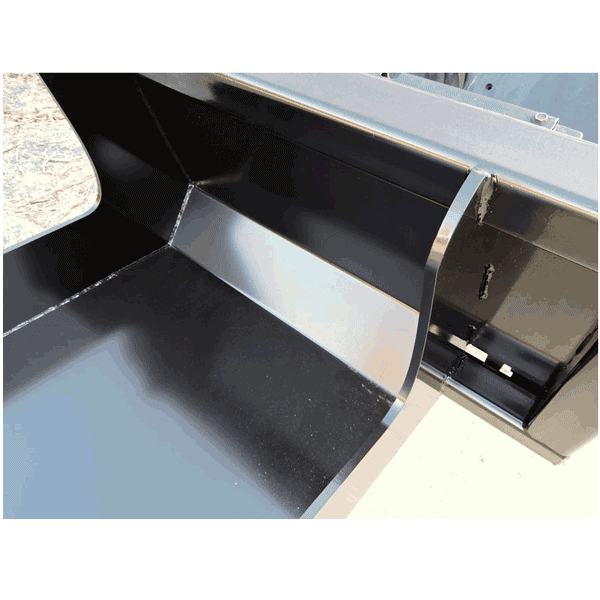

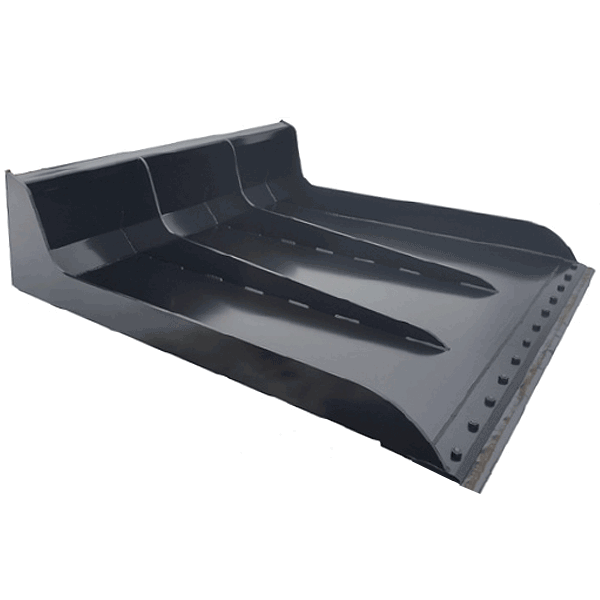

The Quarry Conveyor Bucket is the perfect tool for clearing out unwanted material that accumulates under conveyors in a quarry or in mining environments. This bucket has a generous extended floor and is low profile. It comes standard with 1/2 inch thick side plates and 1/4 inch metal throughout. This bucket will help keep downtime due to material build up to a minimum. Comes in several different sizes and can also be ordered in a custom size.
| MODEL | INSIDE DIMENSION |
OUTSIDE DIMENSION |
HEIGHT | DEPTH | SIDE HEIGHT |
WEIGHT |
|---|---|---|---|---|---|---|
| 28" x 48" Bucket | 28" | 29.5" | 21" | 48" | 6" | 400 LBS |
| 36" x 72" Bucket | 36" | 37.5" | 21" | 72" | 6" | 480 LBS |
| 48" x 60" Bucket | 48" | 49.5" | 21" | 60" | 6" | 720 LBS |
| 48" x 72" Bucket | 48" | 49.5" | 21" | 72" | 6" | 800 LBS |
features
- 1/4" Material
- 1/2" Side Plates
- 1/2"X3" Wear Bars
- 1/2"X6" Weld-on cutting edge with holes
- Includes 3/4" x 8" reversible bolt on cutting edge
- Heavy Duty Frame
- 28"-36" Wide - 2 wear bars
- 48" wide - 3 wear bars
- Double reinforced mounting plate comes standard
- Warranty: 1 year
- Made in the USA
