XR25-Series Trencher Requires 16-25 GPM 2,000-3,000 PSI | Lowe
lowe-xr25
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends December 31, 2024
DETAILS

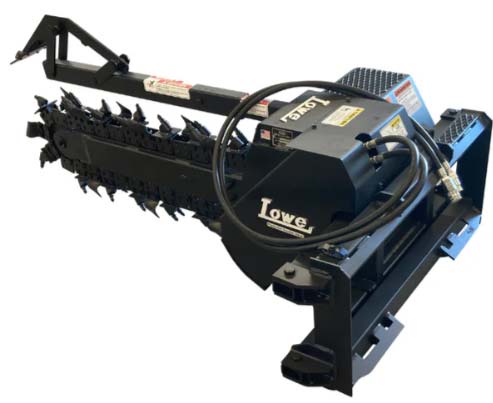

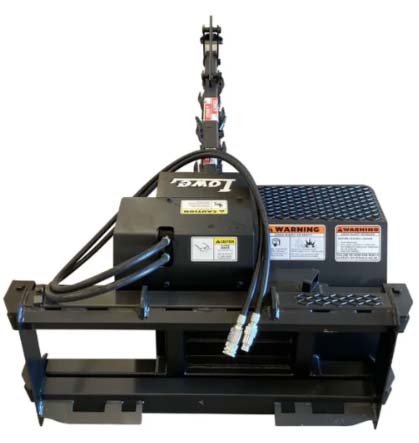

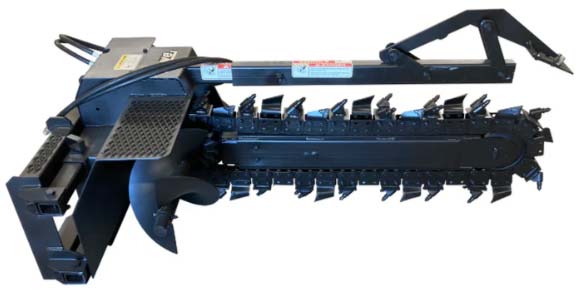

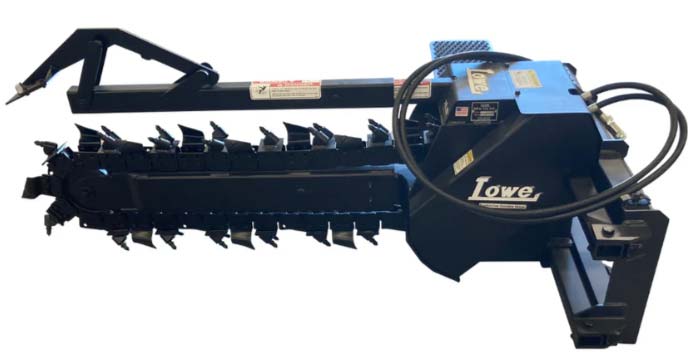

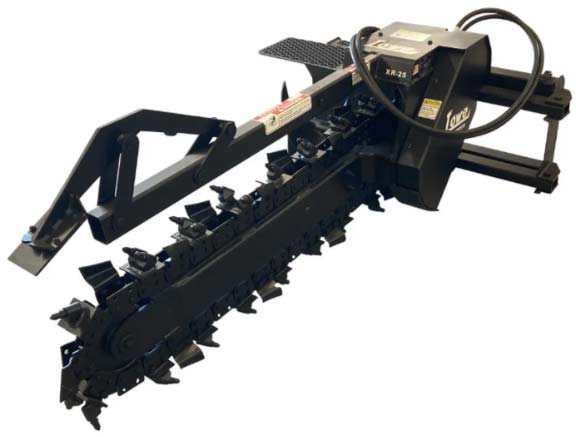

Introducing the Lowe XR25-Series Skid Steer Trencher Attachment – engineered for powerful, efficient trenching. This heavy-duty attachment is designed with exceptional durability, featuring a 50,000 lb. (22,680 kg) digging chain and a removable double-flighted spoil auger to ensure faster, cleaner trenches. Key design enhancements include a self-aligning boom with a grease cylinder tensioning system, maintenance-free tapered roller bearings, an extended-lasting boom roller, and advanced high-pressure operation. Choose the center trench position for optimal performance, or select the manual side-shift – with an optional hydraulic side-shift – for precise trenching near structures or obstacles. Elevate your skid steer’s capabilities with the Lowe XR-Series for consistently reliable and high-performing trenching.
| Model | Recommended Flow | Trench Depth | Trench Width |
|---|---|---|---|
| XR-25 | 16-25 GPM (2,000-3,000 PSI) | 3'-5' | 6"-12" |
SPEED
| Gallons Per Minute | Feet Per Minute | Shaft RPM |
|---|---|---|
| 16 GPM | 210 ft. per minute | 79 RPM |
| 17 GPM | 223 ft. per minute | 84 RPM |
| 18 GPM | 236 ft. per minute | 89 RPM |
| 19 GPM | 250 ft. per minute | 94 RPM |
| 20 GPM | 263 ft. per minute | 99 RPM |
| 23 GPM | 302 ft. per minute | 113 RPM |
| 25 GPM | 328 ft. per minute | 123 RPM |
POWER
| PSI | Torque (lbs/ft) |
|---|---|
| 2,000 PSI | 1,093 lbs/ft. |
| 2,100 PSI | 1,148 lbs/ft. |
| 2,200 PSI | 1,202 lbs/ft. |
| 2,300 PSI | 1,257 lbs/ft. |
| 2,400 PSI | 1,312 lbs/ft. |
| 2,500 PSI | 1,366 lbs/ft. |
| 2,600 PSI | 1,421 lbs/ft. |
| 2,700 PSI | 1,476 lbs/ft. |
| 2,800 PSI | 1,530 lbs/ft. |
| 2,900 PSI | 1,585 lbs/ft. |
| 3,000 PSI | 1,640 lbs/ft. |
features
- Enhanced Self-Aligning Boom Design: Reinforced boom with an advanced grease cylinder tensioning system, built for greater durability and extended performance.
- Reinforced Drive Shaft: Extra strength and wear-resistant design ensures durability under demanding conditions.
- Maintenance-Free Tapered Roller Bearings: Long-lasting bearings at the boom nose minimize maintenance requirements.
- Simplified Maintenance: Easy-to-service design allows for quick part replacements, reducing downtime.
- Upgraded End-Boom Roller: New wear-resistant roller reduces bearing load, extends chain life, and prevents lockups.
- Improved Trencher Housing: Redesigned for better visibility, smoother trench starts, and enhanced digging efficiency.
- Optional Durable Trench Cleaner: Delivers superior cleanout performance with enhanced durability over previous models.
- New High-Pressure LOWE® Hydraulic Motors: Built for greater strength and reliability, designed to handle high-pressure operations.
- Proudly Made in the USA
