Bolt-on Cutting Edge Reversible
BOCE
limited quantity available
DETAILS

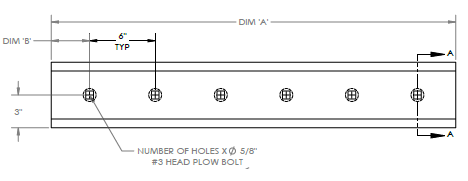

Overall Width of the Cutting Edge is 1" longer than the item description (72" Bolt On Edge is actually 73"). See hole diagram below.
Reversible bolt on Cutting Edge for most skid steer buckets. This is a blade that is bolted on the front end of your skid steer or compact tractor bucket, allowing the bucket to plow through whatever is in front of it. It also helps to extend the life of the bucket.
This cutting edge is made of 1/2" x 6" schedule 1080 steel with holes punched 6" on center; a standard in the industry. Bolts & nuts (5/8″ – 11×2, GRD 8) included. The skid steer bucket cutting edge is reversible, giving it longer life. Just remove, flip over and re-secure for extended life of the edge. If you do not see the size you need please call toll free 866-598-2128.
SIZE | DIMENSION "A" |
DIMENSION "B" |
# OF HOLES |
---|---|---|---|
36” Bolt On Edge | 37" | 3.5" | 6 |
42” Bolt On Edge | 43" | 3.5" | 7 |
44” Bolt On Edge | 45" | 4.5" | 7 |
48" Bolt On Edge | 49" | 4.5" | 8 |
50" Bolt On Edge | 51" | 2.5" | 8 |
52" Bolt On Edge | 53" | 3.5" | 9 |
54" Bolt On Edge | 55" | 3.5" | 9 |
60" Bolt On Edge | 61" | 3.5" | 10 |
66" Bolt On Edge | 67" | 3.5" | 11 |
72" Bolt On Edge | 73" | 3.5" | 12 |
78" Bolt On Edge | 79" | 3.5" | 13 |
84" Bolt On Edge | 85" | 3.5" | 14 |
90" Bolt On Edge | 91" | 3.5" | 15 |
96" Bolt On Edge | 97" | 3.5" | 16 |
102" Bolt On Edge | 103" | 3.5" | 17 |
Skid Steer Bucket Cutting Edge
Check out our great selection of skid steer bucket cutting edges. Our practical Bolt-On Cutting Edge is double beveled and is available for most any size bucket and comes with 3/4 inch plow bolts for a quick swap out of your old cutting edge. Our weld-on cutting edges come in various different widths and thicknesses available for different applications and bucket sizes. Made in the U.S.A. of quality, high-carbon steel, the single bevel, weld-on cutting edges protect your bucket from damage while allowing you razor-sharp precision on every job. With or without holes and available in various lengths, we're sure to have the skid steer bucket cutting edge that will protect your bucket and keep your skid steer working at its very best. If you don't see the size you need, call and ask us - we can often custom cut the Skid Steer Bucket Cutting Edge to size.
