Product ID:
BD-HF-CPLNR
Availability:
out of stock

LIMITED TIME FREE SHIPPING!

10% discount applied.
Sale ends December 31, 2024

$31,796.00$28,616.40
Questions?Call 866-315-3134 - Se Hable Espanol
Business financing:

Business Financing Available

DETAILS

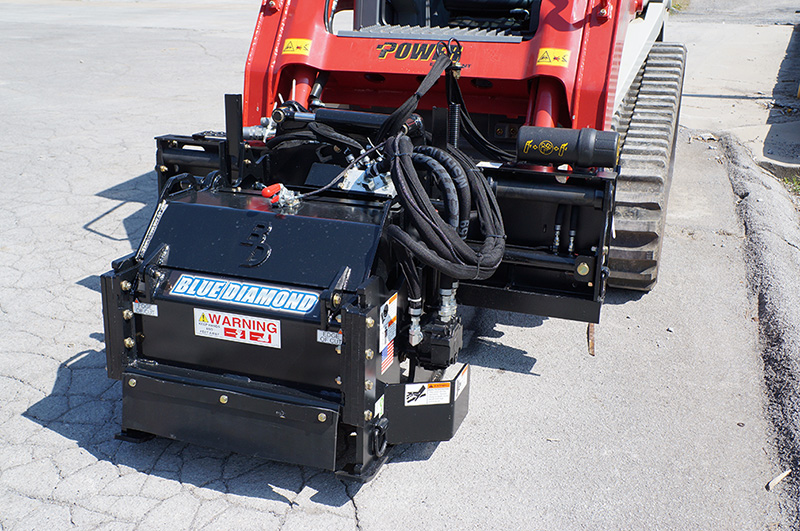

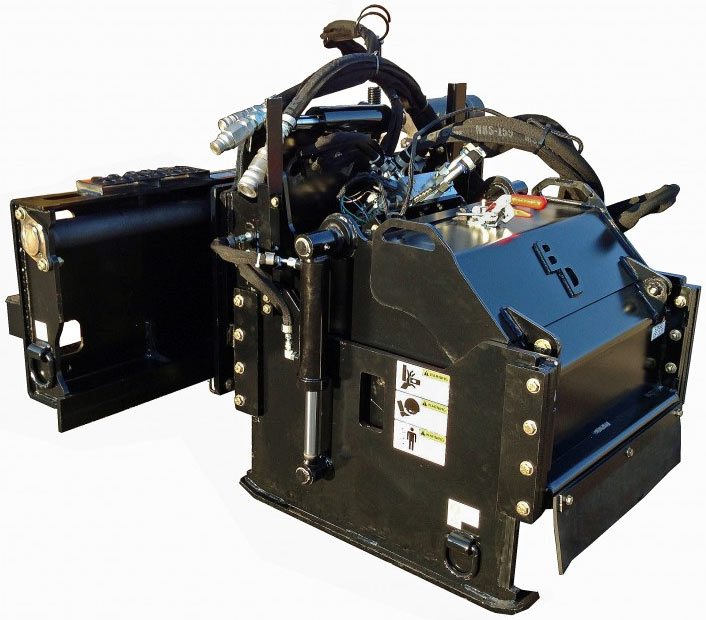

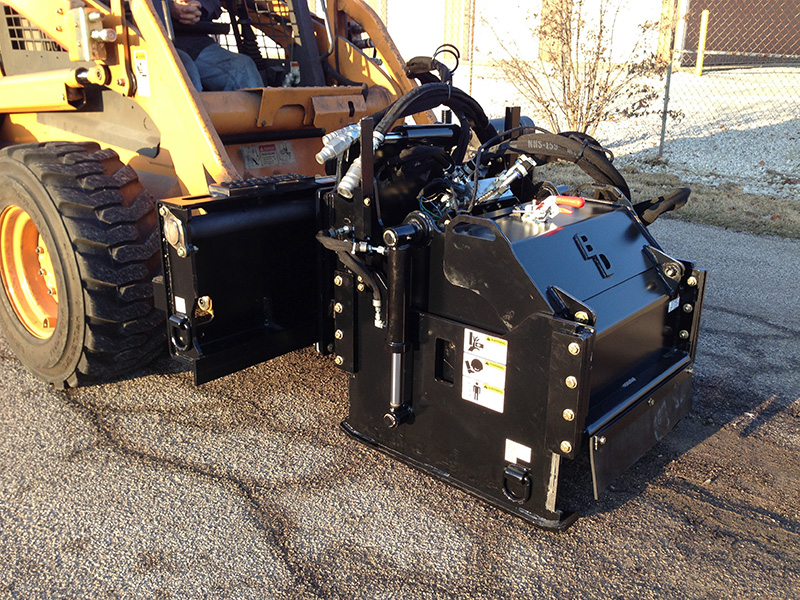

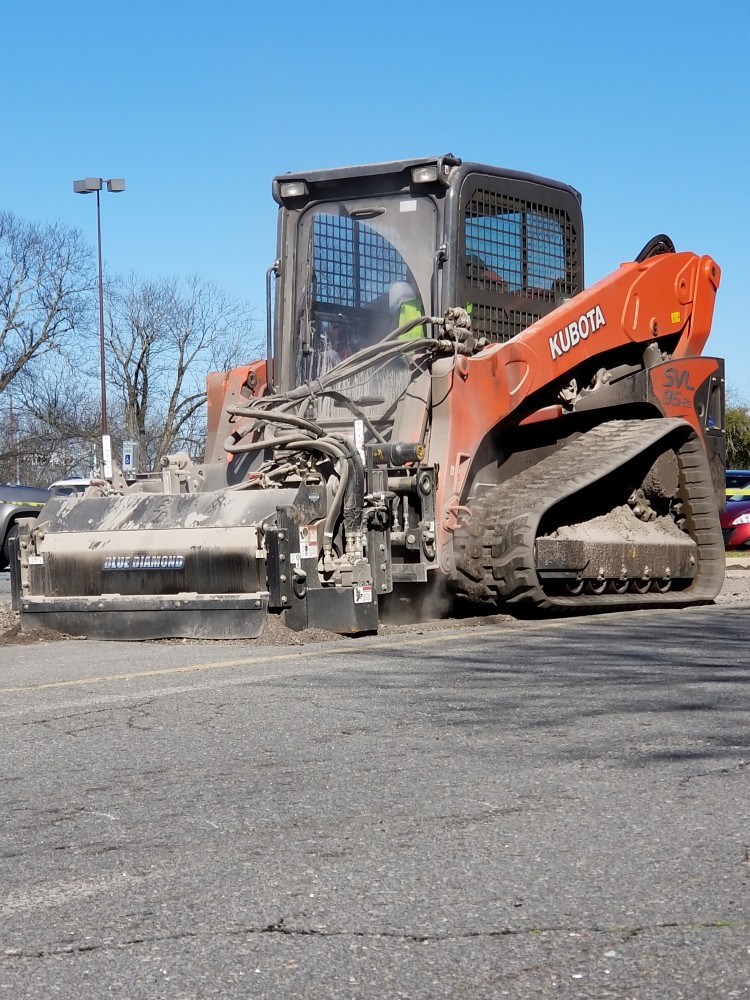

The all new Blue Diamond® High Pressure High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor, to the Fairfield planetary hub featured in the high-flow models. The all new Iron block design allows for up to 5000 psi (Highest in the industry). These high end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment.

APPLICATONS INCLUDE

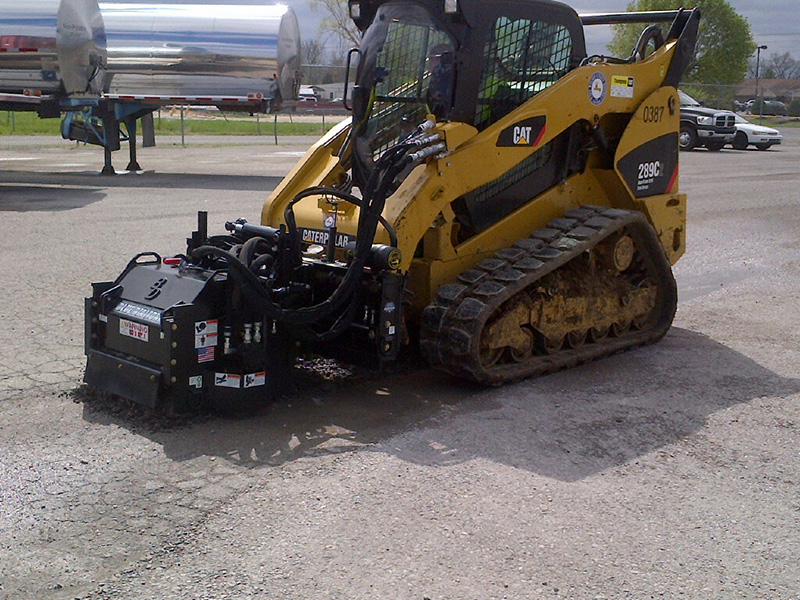

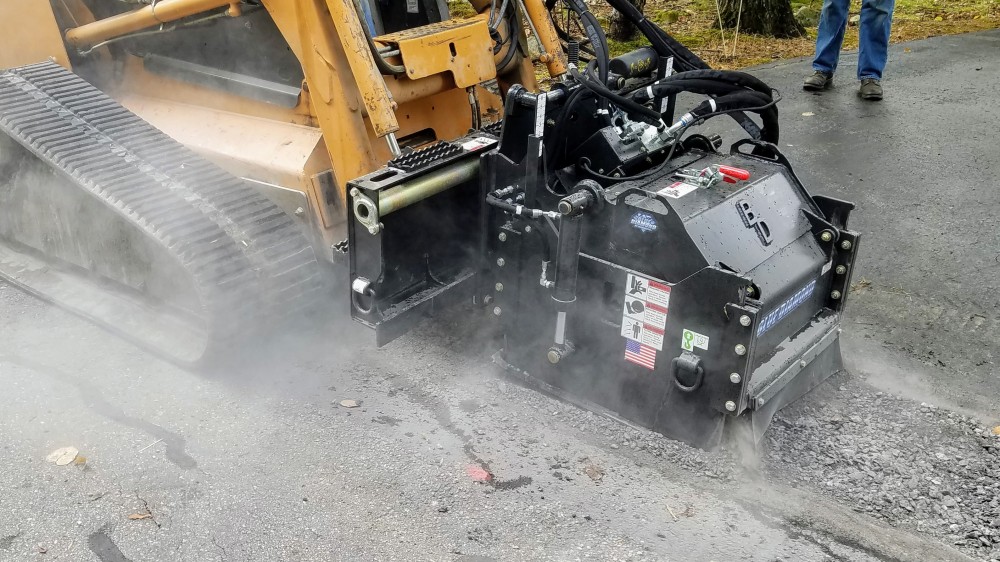

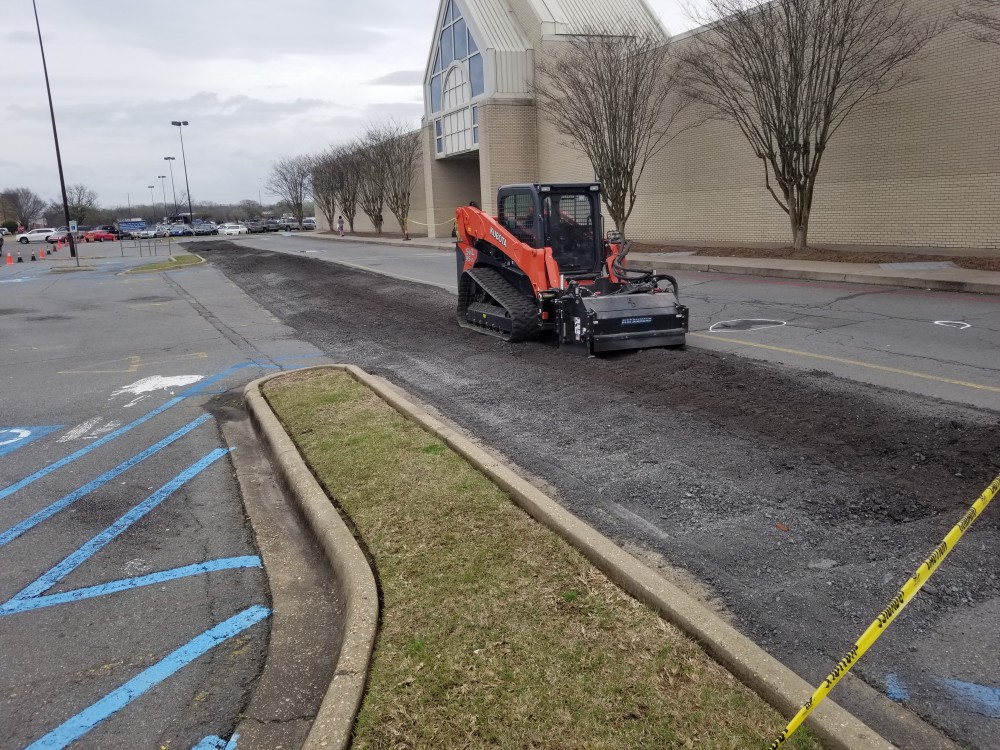

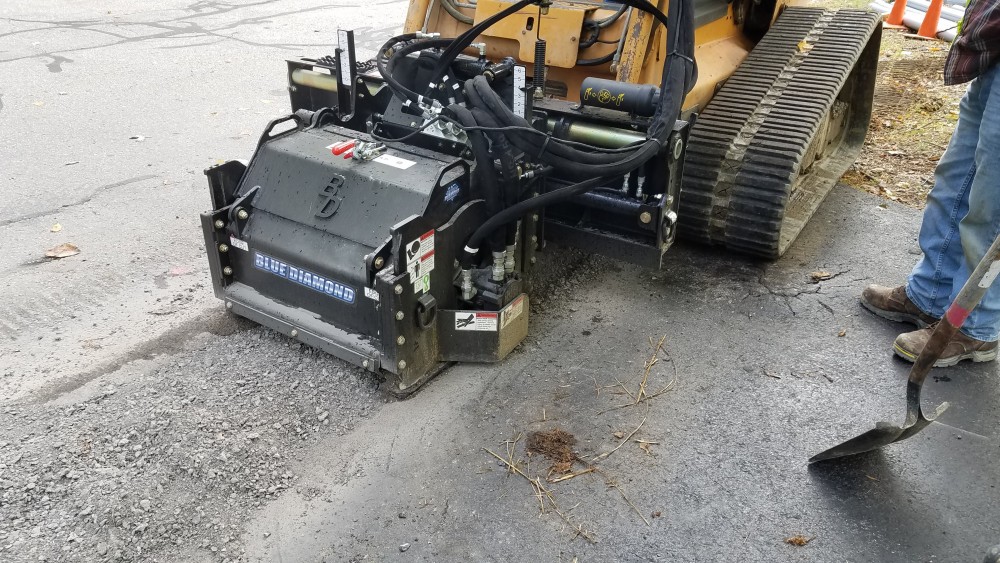

  • Removing asphalt surfaces prior to overlay
  • Widening shoulders
  • Repairing potholes
  • Restoring drainage lines
  • Mixing stabilizing agents into base for a more durable repair
MODEL NUMBER
OF TEETH
MIN - MAX
PSI
MIN - MAX
FLOW (GPM)
WEIGHT
16" High Flow Cold Planer 38 2450-
5000 PSI
27-45
GPM
1,710 LBS
18" High Flow Cold Planer 40 2450-
5000 PS
27-45
GPM
1,810 LBS
24" High Flow Cold Planer 50 2450-
5000 PS
27-45
GPM
1,970 LBS
30" High Flow Cold Planer 60 2500-
5000 PSI
30-45
GPM
2,160 LBS
40" High Flow Cold Planer 76 3000-
5000 PSI
30-45
GPM
2,455 LBS
48" High Flow Cold Planer 90 3250-
5000 PSI
30-45
GPM
3,210 LBS

features

  • Electronic adjustment controls
  • Hydraulic side shift 26"
  • High-torque, planetary drive
  • Direct Drive
  • High drum weight = less vibration
  • 5/8″ thick drum tube
  • Iron block allow for up to 5000 PSI
  • Easy access tooth replacement
  • Water kit available
  • Fine-cut drum available
  • 16″-48″ Grinding Widths
  • Up to 6″ Cutting Depth
  • Made in the USA
  • 1 year warranty

WHAT MAKES OUR COLD PLANER BEST IN CLASS

Iron Block - Most cold planers out on the market come standard with an aluminum block. The aluminum block typically allow for only up to 3500 PSI. The all new Blue Diamond Cold Planer has an iron block that allows for an industry best 5000 PSI.

Side Shift - side shift is a very important feature on a cold planer. Working alongside a curb is an issue faced by most any contractor and can be very frustrating when they are unable to get close enough. Our experience has shown that our cold planer has the most side shift off center in the industry giving you reach you need to get the job done right.

Drum supported on the opposing side from the motor. Our Cold Planer uses a premium load bearing opposite the motor side to support the drum. This is an obvious improvement over most competitors and keeps the machine running smooth and lengthens the life of the attachment.

Skid shoes versus roller wheels. Our experience with roller wheels is that due to the abrasive nature of the material they are in consistently, these last a very short time and then they become a nuisance.

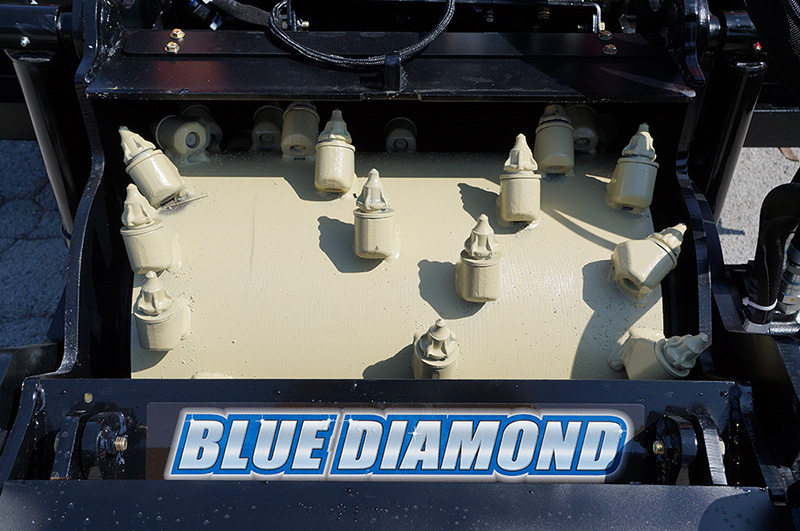

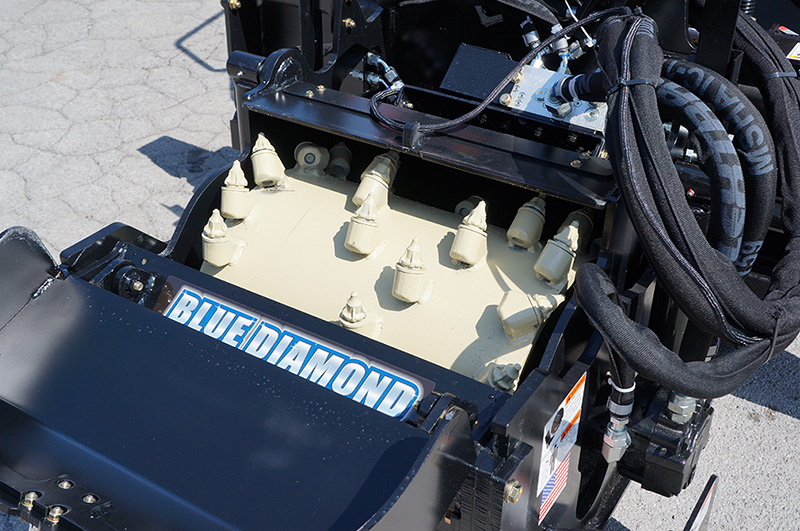

Rocket fin teeth. These teeth turn as they cut and this provides longer tooth life by wearing the tooth consistently and also keeps the tooth from seizing in the holder. Longer tooth life and easier changing saves both time and money. The large access cover also makes tooth changes easier
