General Purpose Low Profile Bucket | Blue Diamond
GP-LP-BCKT
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends November 30, 2024
DETAILS

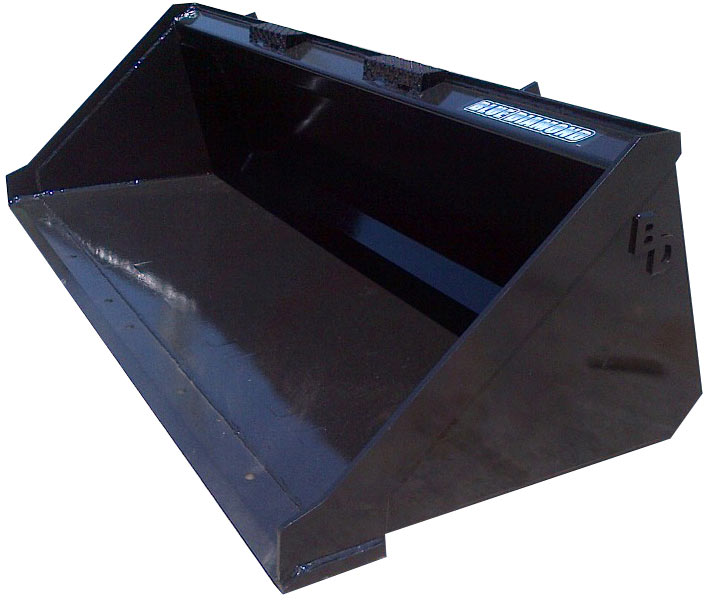

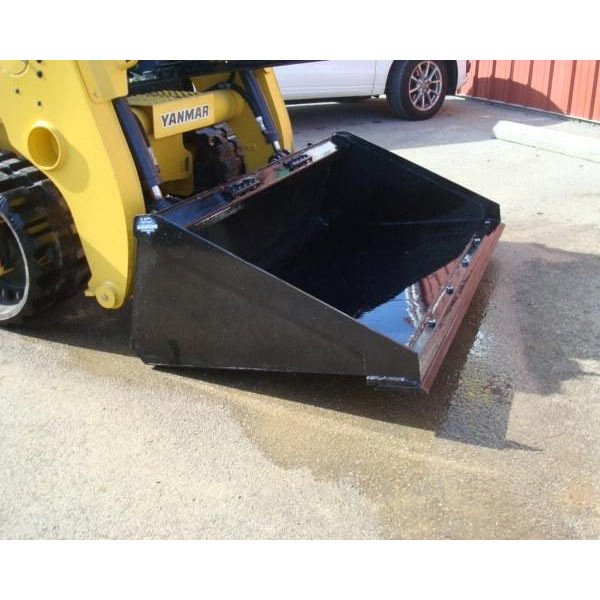

Blue Diamond Low Profile Heavy Duty Bucket is available in standard bottom or long bottom. These highly engineered buckets feature powerful breakout force and excellent visibility. Comes with a 3/4" x 6" weld on cutting edge with holes. You can add an optional bolt on cutting edge if you would like. Buckets 60"-72" wide use A36 3/16" American steel back and bottom, and 78" and larger use A36 1/4" American steel. Standard bottom buckets have a 20" tall back and a 30" long bottom. Long bottom buckets have a 20" tall back and a 36" long bottom. Recommended for machines 60 HP or less. For higher horsepower machines please see Blue Diamond Severe Duty Skid Steer Bucket.
MODEL | STRUCK CAPACITY |
WEIGHT |
---|---|---|
60” LOW PROFILE | 10.8 CU FT | 334 LBS |
66” LOW PROFILE | 12.2 CU FT | 354 LBS |
72” LOW PROFILE | 13.2 CU FT | 378 LBS |
78” LOW PROFILE | 14.3 CU FT | 408 LBS |
84” LOW PROFILE | 15.7 CU FT | 436 LBS |
60” LOW PROFILE-LONG BOTTOM | 15.7 CU FT | 385 LBS |
66” LOW PROFILE-LONG BOTTOM | 17.3 CU FT | 426 LBS |
72” LOW PROFILE-LONG BOTTOM | 18.6 CU FT | 446 LBS |
78” LOW PROFILE-LONG BOTTOM | 20 CU FT | 471 LBS |
84” LOW PROFILE-LONG BOTTOM | 22 CU FT | 505 LBS |
features
- 1/2" wear bars
- Standard bottom: 20" high, 29" deep
- Long bottom: 20" high, 36" deep
- 60" - 72", uses 3/16" wrap
- 78" - 84", uses 1/4" wrap
- 3/4" cutting edge
