DETAILS
Includes Free Bolt On Cutting Edge - A $357- $420 value!
Perfect for machines ranging from 65 hp all the way up to 150 hp! Capable for use with the largest skid steers on the market.

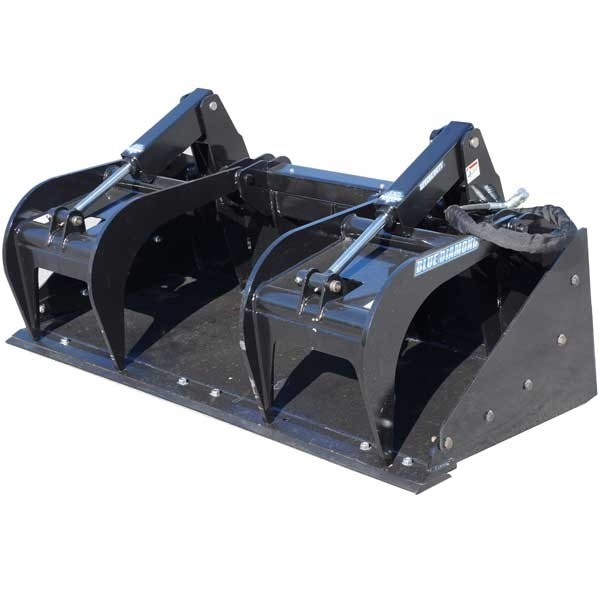

The all new Severe Duty Grapple Bucket was engineered from years of field testing and input for demolition contractors and recyclers. We have now created one of the most effective, durable built grapple buckets in the industry. Available in 60, 66", 72", 78" and 84" models.
| MODEL | CAPACITY | WEIGHT |
|---|---|---|
| 60" Severe Duty Grapple Bucket | 10.26 CU FT | 875 LBS |
| 66" Severe Duty Grapple Bucket | 11.07 CU FT | 910 LBS |
| 72" Severe Duty Grapple Bucket | 11.88 CU FT | 995 LBS |
| 78" Severe Duty Grapple Bucket | 12.69 CU FT | 1,033 LBS |
| 84" Severe Duty Grapple Bucket | 14.04 CU FT | 1,066 LBS |
features
- Bolt on sides - This allows the operator to carry more material, or remove the sides for handling long logs or pipes.
- Newly designed pivot points for heavy continues use for industries such as scrap metal facilities or demolition. The 1.25 diameter pivot pins are housed in bushings with grease fittings.
- No pinch point hose routing will prevent downtime due to hose damage.
- Grapple clamps use 2 heavy gauge cross members and solid plate used to protect the cylinders.
- Cylinders are covered for additional protection.

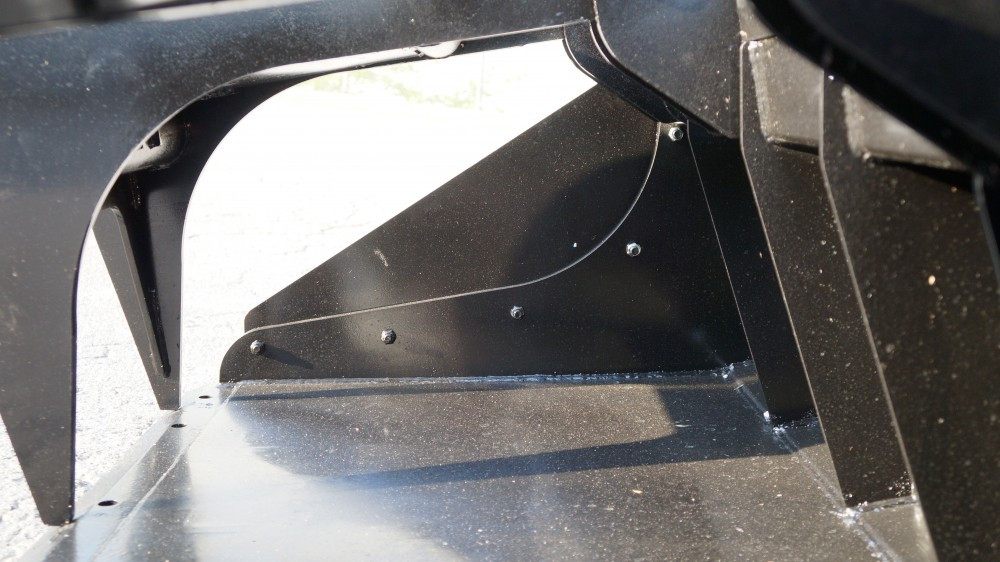

- Heavily reinforced floor and tower with braces.
- The Severe Duty Grapple Bucket is perfect for applications such as demolition, recycling, transfer stations, wood processing, and other industrial use.
- Made in the USA
- Warranty: 1 year
