Heavy Duty Forestry Drum Mulcher | Blue Diamond

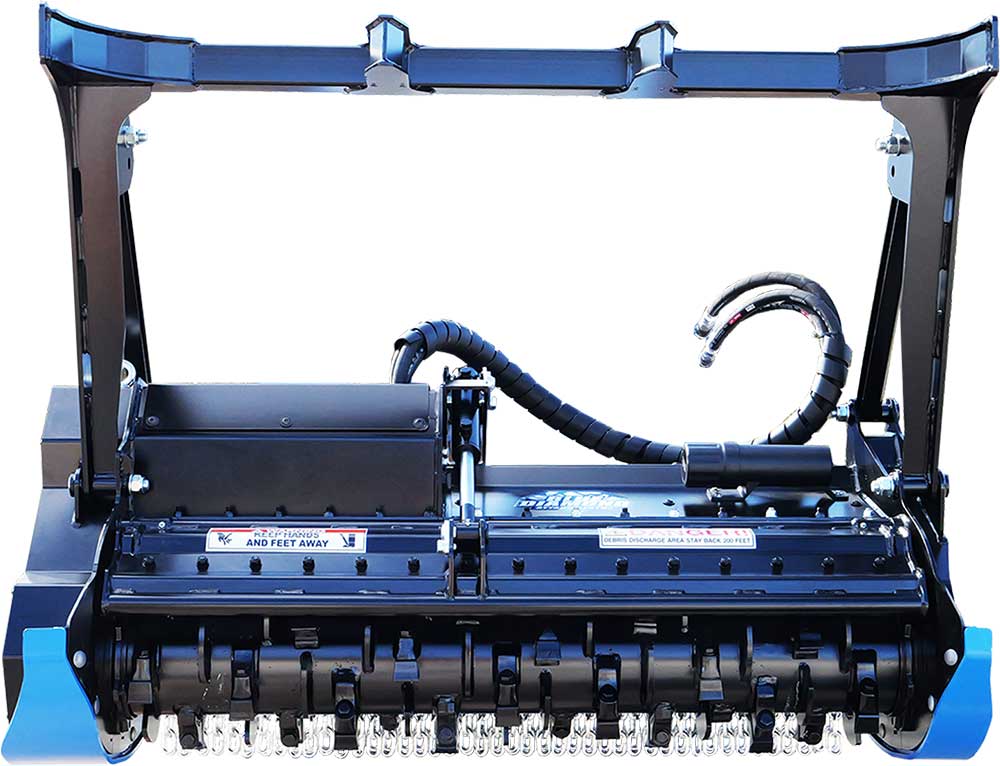

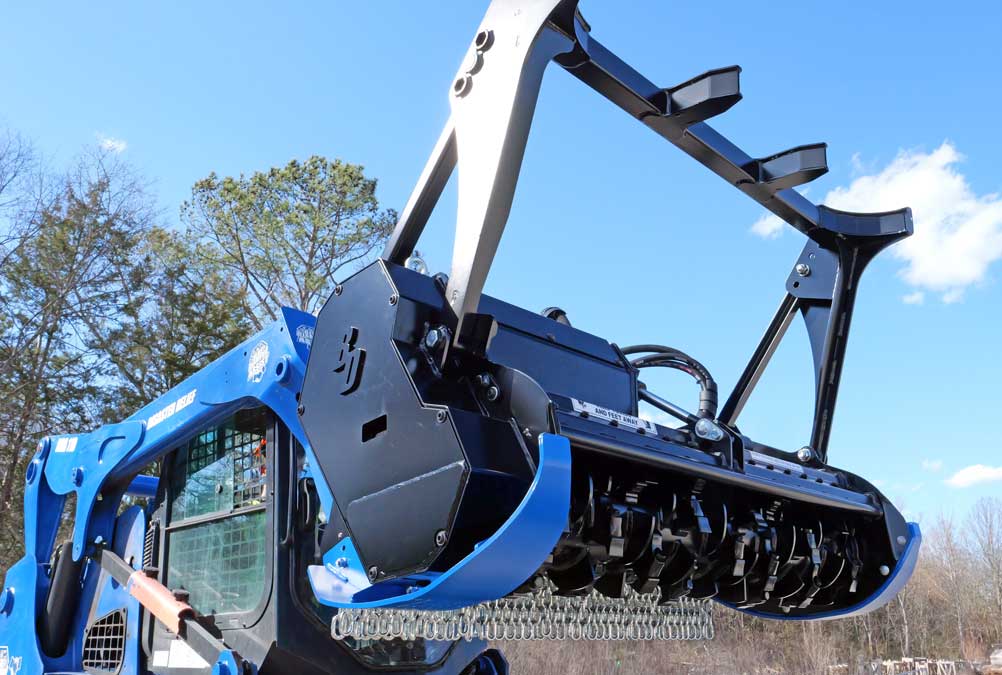

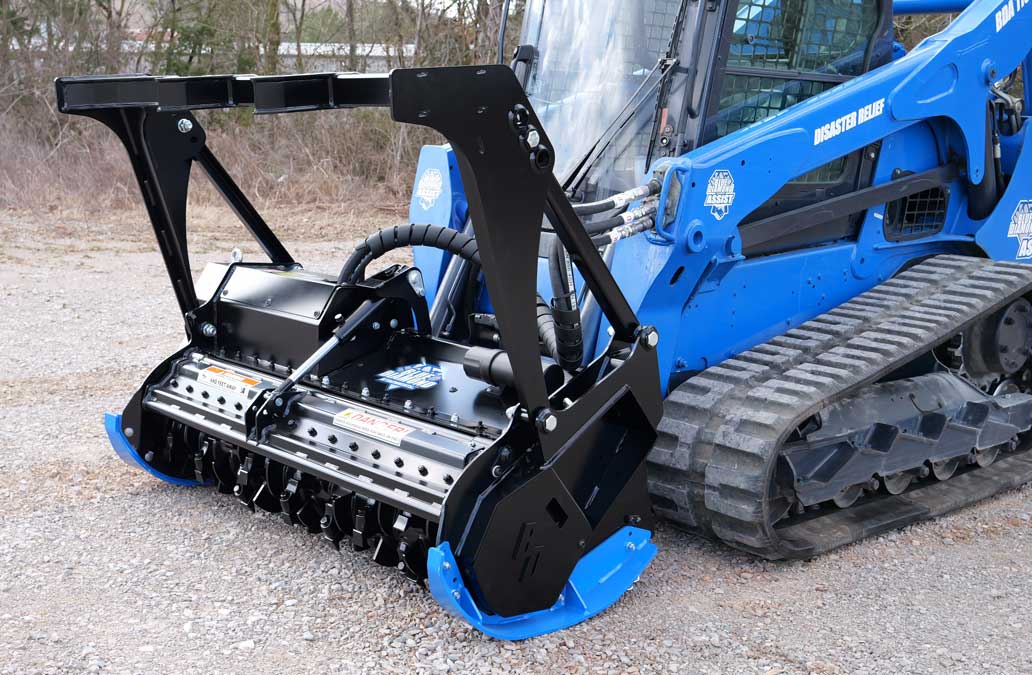

The Blue Diamond® Heavy-Duty Drum Mulcher is engineered for superior performance in land clearing, forestry management, and vegetation control. Designed with a compact, high-powered structure, this versatile skid steer attachment seamlessly fits a wide range of machines, making it ideal for mulching thick brush, grinding stumps, and processing large branches with ease. Built for durability and efficiency, this drum mulcher ensures a high-quality finish while delivering exceptional cutting power, setting it apart from the competition. Upgrade your skid steer with the ultimate land management solution today!

MODEL	WEIGHT
60” W/CHIPPING TEETH, 3-LINE, 22-46 GPM, 1/2" COUPLER	2105 lbs
60” W/CARBIDE TEETH, 3-LINE, 22-46 GPM, 1/2" COUPLER	2105 lbs
60” W/CHIPPING TEETH, 5-LINE, 22-46 GPM, 1/2" COUPLER	2105 lbs
60” W/CARBIDE TEETH, 5-LINE, 22-46 GPM, 1/2" COUPLER	2105 lbs
60” W/CHIPPING TEETH, 3-LINE, 22-46 GPM, 3/4" COUPLER	2105 lbs
60” W/CARBIDE TEETH, 3-LINE, 22-46 GPM, 3/4" COUPLER	2105 lbs
60” W/CHIPPING TEETH, 5-LINE, 22-46 GPM, 3/4" COUPLER	2105 lbs
60” W/CARBIDE TEETH, 5-LINE, 22-46 GPM, 3/4" COUPLER	2105 lbs

What is the difference between a 3-line vs 5-line hydraulic system:

3-line system: Uses 1 pressure hydraulic line, 1 return line, and a case drain line. The case drain line allows excess fluid or leakage from the valve or motor to return to the tank with minimal backpressure, protecting seals and improving efficiency. For this drum mulcher attachment, you will need to use the electrical harness to operate the hydraulic gate.

5-line system: Typically refers to a more complex setup, often with 2 pressure lines (for dual pressure circuits or auxiliary functions), 2 return lines, and 1 case drain. It offers more control, allowing for multi-function hydraulics or higher flow systems. In most cases you will have 2 high flow hookups and 2 low flow hookups. In this case the high flow will be used to power the drum and the low flow will be used to operate the hydraulic gate. You will not need an electrical harness if you decide to go with the 5 line system.

Key difference: 5-line systems provide greater flexibility and control for advanced machinery, while 3-line systems are simpler and sufficient for standard operations.

60” Cutting Drum – Equipped with carbide or reversible chipping teeth for maximum durability and efficiency.
Standard Hydraulic Gate – Provides enhanced control for precision mulching.
Versatile Hydraulic Options – Available in 3-line or 5-line hydraulic configurations to suit different skid steer models.
Durable Coupler Choices – Compatible with 1/2” or 3/4” couplers for seamless attachment.
High-Strength Steel Construction – Built to withstand the toughest land-clearing conditions.
Adjustable Push Bar – Enhances control and efficiency while operating.

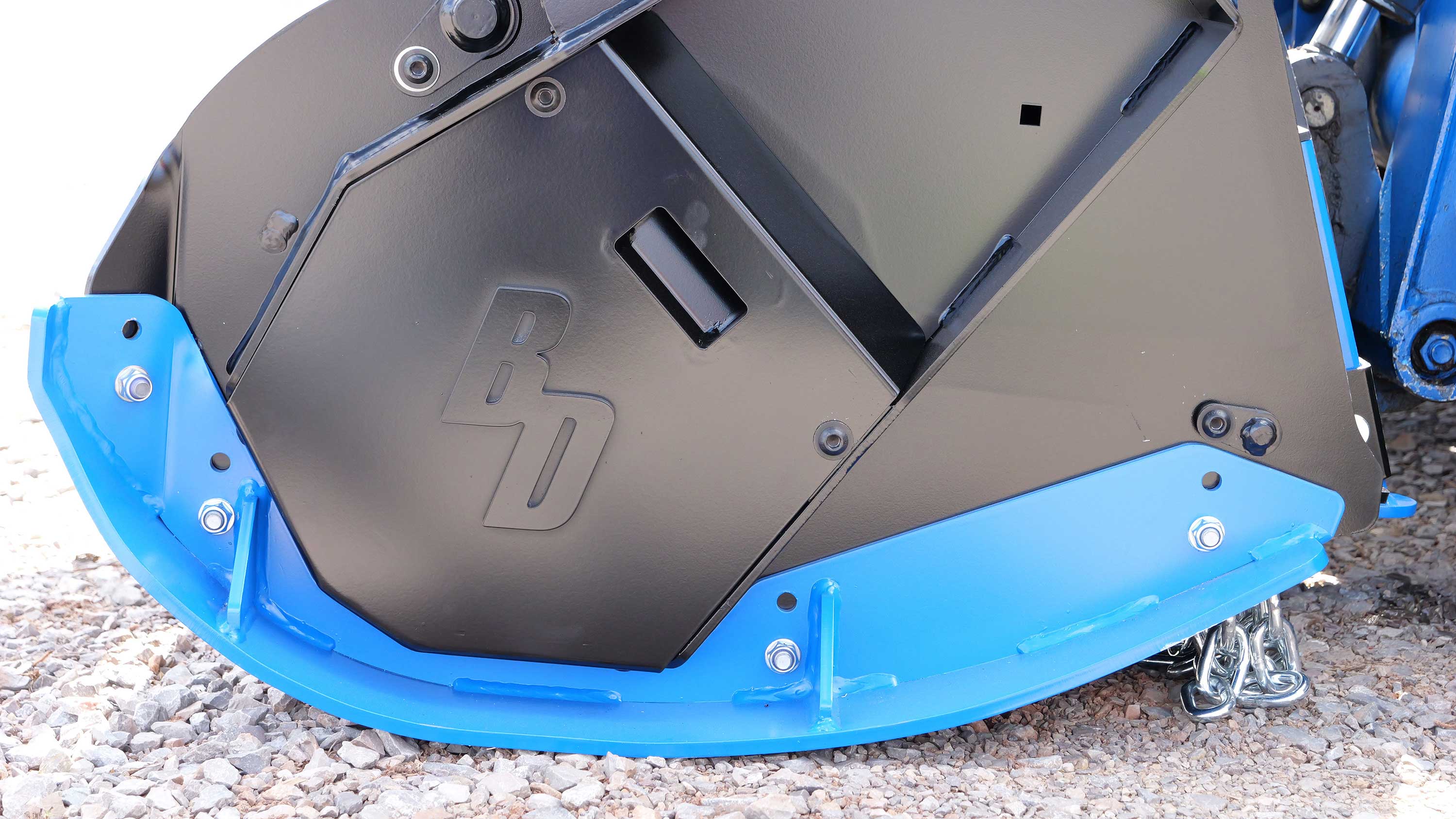

Customizable Depth Skid Shoes – Allows for precise cutting depth adjustments.

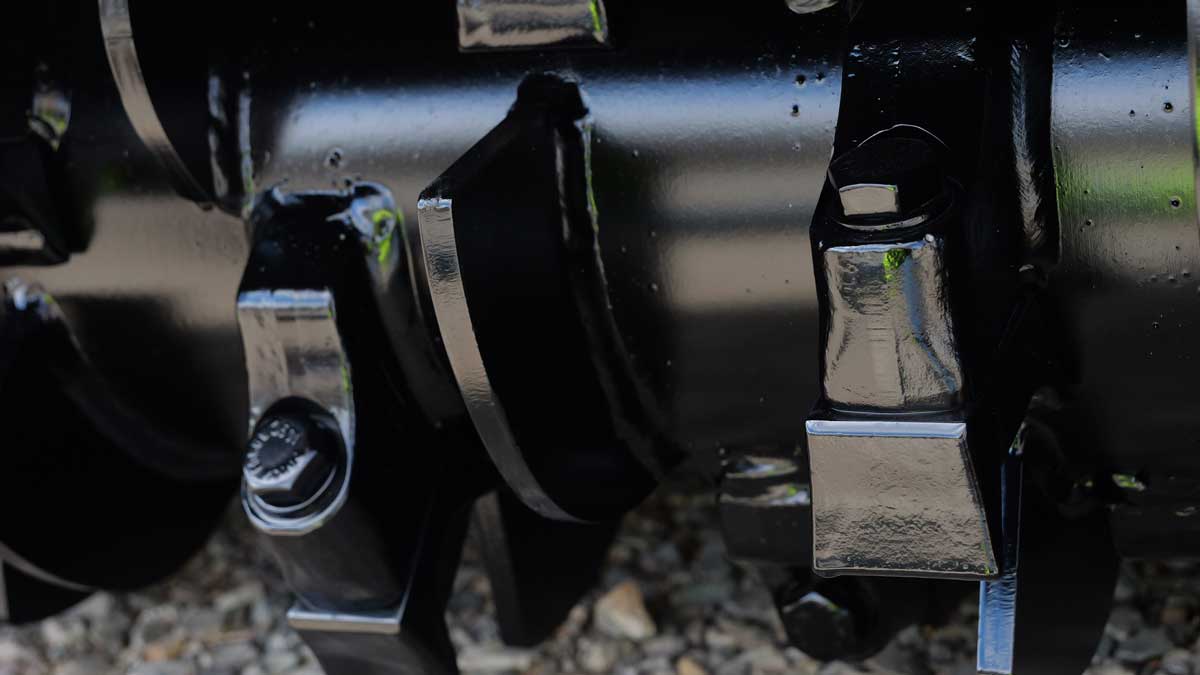

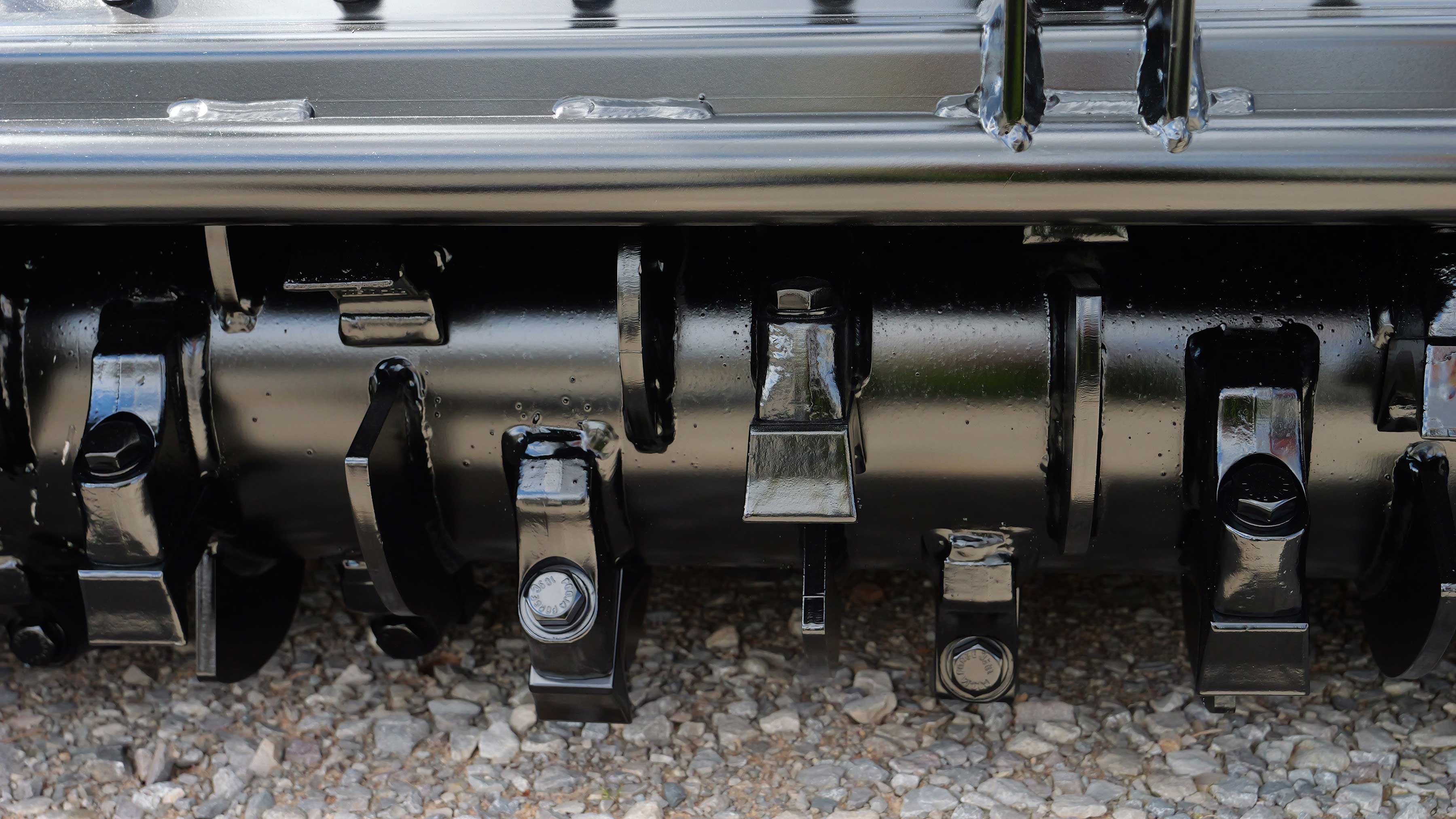

Advanced Rotor Design – Features replaceable shafts and fixed teeth in a helical position with “P-CUT” bite limiters for optimized mulching performance.
Reinforced Polychain Drive Belts – Made with carbon fiber for superior strength and longevity.
Innovative ESB System – Side extension device between the motor and pulleys for improved efficiency and performance.
High-Performance Hydraulic Motor – Variable displacement hydraulic piston motor (up to 85CC) with an integrated anti-cavitation valve for smooth operation.
Optimized Hydraulic Flow Requirements – Operates efficiently within a 22-46 GPM hydraulic flow range for compatibility with various skid steers.
