Heavy Duty Low Profile Extended Lip Bucket | Berlon
Product ID:
BRLN-BCKT-HDELLP
BRLN-BCKT-HDELLP
Availability:
limited quantity available
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends November 30, 2024
$2,685.00$2,550.75
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
DETAILS

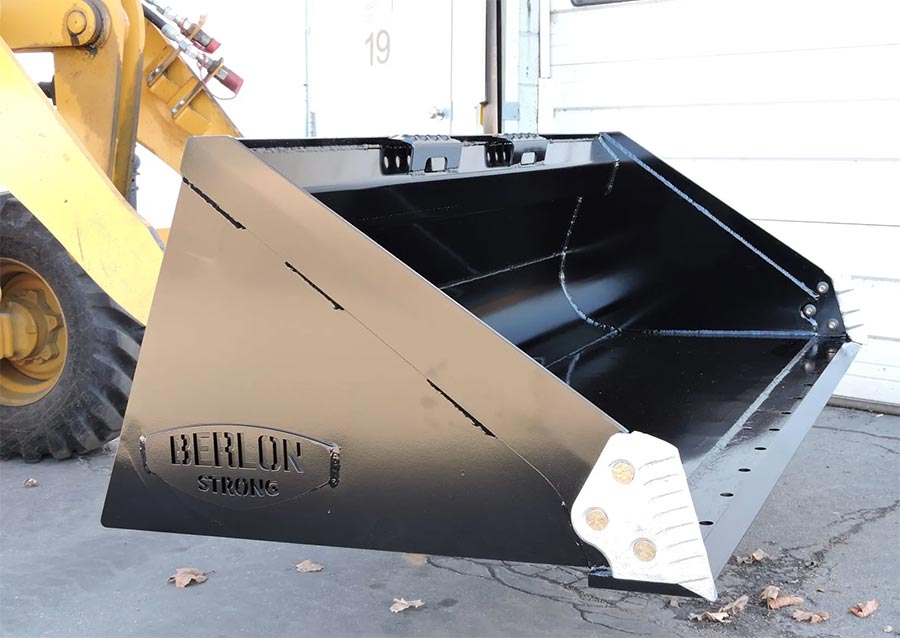

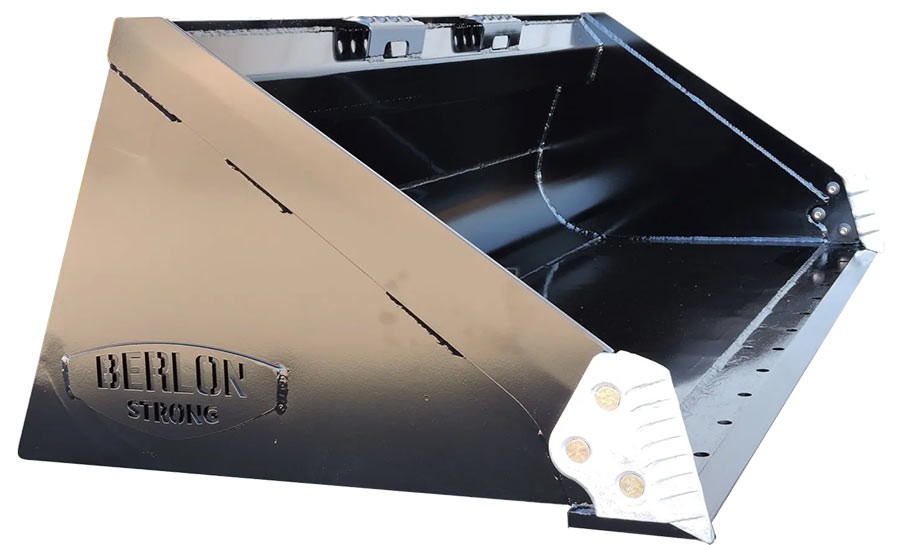

The Heavy Duty Extended Lip low profile skid steer bucket is perfect for construction sites where larger loaders are often used. This bucket comes in 4 different widths 72", 78", 84" and 90". The body of the the bucket is constructed with 1/4 inch steel with a heavy duty dimple plate on the floor of the bucket. The dimple plate makes the floor of the bucket 5 times stronger than wear bars alone. The body is also fully welded and double reinforced in critical areas for the heavy usage. Ideal for machines 75 hp and greater.
MODEL | INSIDE DIMENSION |
OUTSIDE DIMENSION |
HEIGHT | DEPTH | ANGLE | WEIGHT | HEAPED CAPACITY |
---|---|---|---|---|---|---|---|
72" Bucket | 72" | 73.5" | 23.5" | 36" | 70 Degree |
823 LBS | 23.5 cu/ft |
78" Bucket | 78 | 79.5" | 23.5" | 36" | 70 Degree |
891 LBS | 25.5 cu/ft |
84" Bucket | 84 | 85.5" | 23.5" | 36" | 70 Degree |
959 LBS | 27.4 cu/ft |
90" Bucket | 90 | 91.5" | 23.5" | 36" | 70 Degree |
1027 LBS | 29.4 cu/ft |
features
- Side Cutters
- Fully welded body
- Body constructed of 1/4 inch American steel
- 1/4" x 6” weld-on cutting edge with holes
- Heavy Duty dimple plate making the floor 5 times stronger than wear bars alone
- 3/8” x 3” beveled side edges
- Double reinforcement in critical areas
- Radius kick-out plate
- Heavy Duty Universal mounting plate
- Warranty: 1 year
- Made in the USA
