Log Splitter Horizontal Vertical Skid Steer Attachment
RAM-SSHV
limited quantity available
LIMITED TIME FREE SHIPPING!
5% discount applied.
Sale ends November 30, 2024
DETAILS

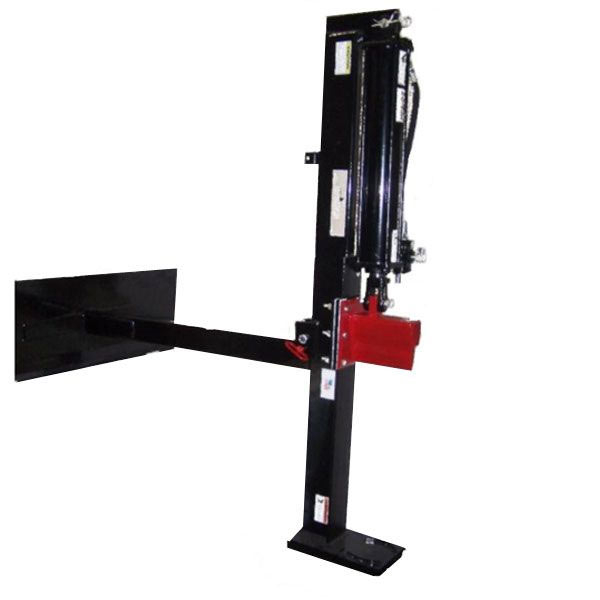

Make your loader more efficient by adding Our Horizontal / Vertical log splitter attachment. You will have the low cost of using your existing loader for driving the hydraulics. Just hook up to the auxiliary outputs and you are ready to split logs up to 26” Long, Either horizontally or vertically for the ones you just can’t get off the ground. Operating pressure of this splitter is only 2500 PSI so you can run your loader in idle and receive the maximum output of this machine. One Year Warranty on all Parts.
**Since this splitter is operated from outside the cab of the machine, you will need to have a continuous flow option on your hydraulics. You will also want to make sure that the hydraulics on your machine are able to stay engaged while you are working outside the cab.
| MODEL | 20 TON | 30 TON |
|---|---|---|
| Force (Tons) | 20 tons of ram force | 30 tons of ram force |
| Pressure | Up to 40,000 pounds of ram pressure | Up to 60,000 pounds of ram pressure |
| Cylinder | 4 Inch Cylinder has a 1 1/2 Inch Tail Rod with 24 Inch Ram Stroke |
5 Inch Cylinder has a 2 Inch Tail Rod with 24 Inch Ram Stroke |
| Minimum Flow (GPM) | 8 GPM | 13 GPM |
features
- Splits logs up to 26”
- "Deadman" SAFETY switch automatically stops the ram when the handle is released
- Control Valve locks into return and automatically returns to the start position
- Built in Relief valve protects the hydraulic system
- Solid Rectangular Commercial Grade Tube Design eliminates twisting and bending of beam
- Wear strips between the ram and the beam for increased life of log splitter
- Heavy Construction Universal Mounting Plate
- Additional mounting plates available if not universal for additional charge
- One year warranty on all parts
- Made in the USA
