DETAILS

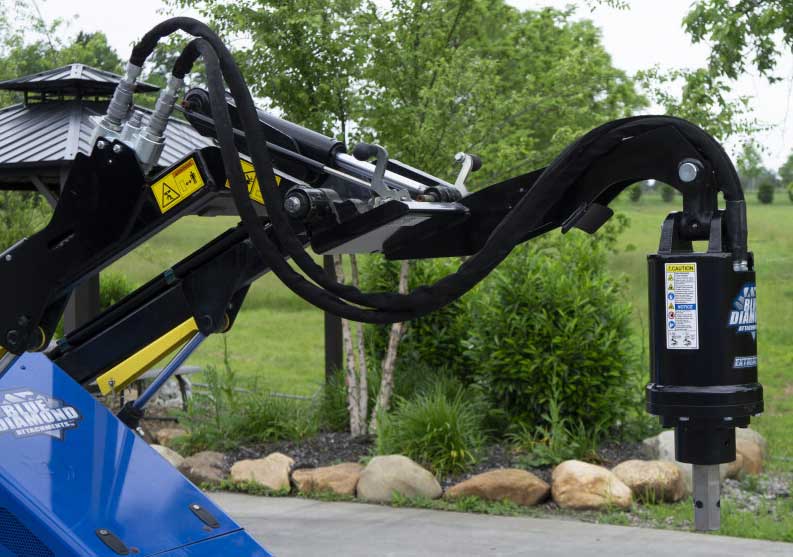

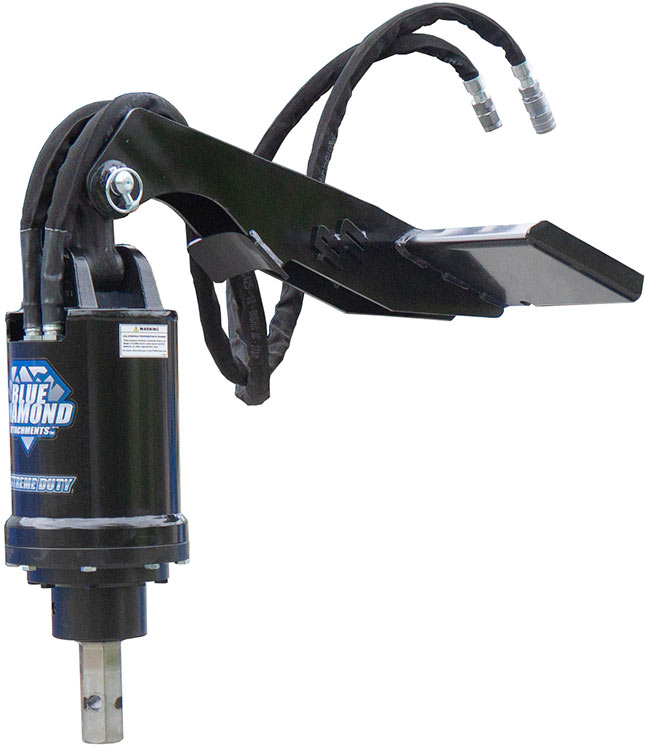

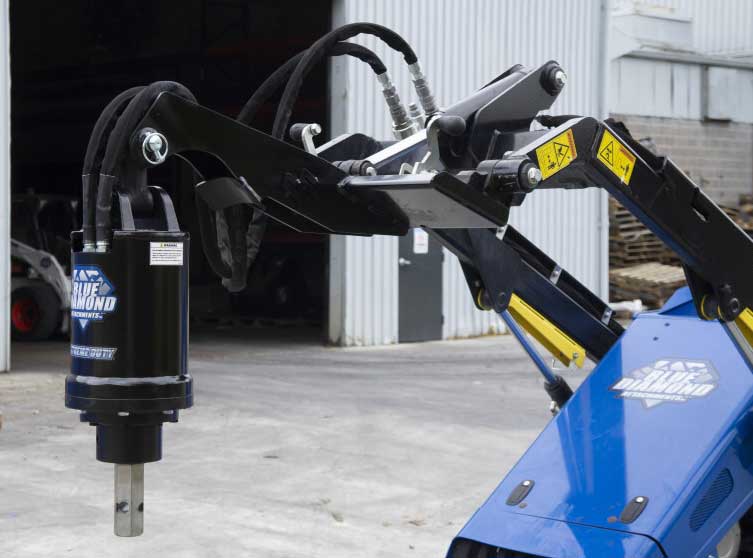

The all new Blue Diamond Series 2 Extreme Duty Auger offers the ultimate in performance, quality, and cost effectiveness. Designed with high-grade materials and innovation, this design allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. The Blue Diamond® Extreme Duty Auger Series 2 drives are perfect for drilling and augering in most ground conditions.
| MODEL | EX1 | EX2 | EX3 | EX4 | EX4F |
|---|---|---|---|---|---|
| TORQUE FT-LBS @ 3,000 PSI | 1,467 | 2,254 | 2,829 | 3,275 | 3,583 |
| MAX TORQUE FT-LBS @ 3,500 PSI | 1,712 | 2,630 | 3,300 | 3,821 | 4,180 |
| RECOMMENDED FLOW (GPM) | 6–16 | 10–26 | 10-30 | 10-30 | 10-36 |
| PEAK EFFICIENCY (GPM) | 8–11 | 12-16 | 17-20 | 19-23 | 21-26 |
| MOTOR TYPE | Eaton | ||||
| MAX PRESSURE — DO NOT EXCEED | 3,500 psi @ 16 gpm | 3,500 psi @ 27 gpm | |||
| MAX FLOW — DO NOT EXCEED | 30 gpm @ 1,800 psi | 42 gpm @ 3,100 psi | |||
| MAX HP | 33 | 55 | |||
| PRESSURE RELIEF VALVE | N/A | Included | |||
| STANDARD OUTPUT SHAFT | 2" Hex | ||||
| MAX DRILLING DIAMETER CLAY/SHALE | 12" | 24" | |||
| MAX DRILLING DIAMETER EARTH | 24" | 30" | 36" | ||
| WEIGHT (LBS) | 101 | 123 | 125 | 180 | 180 |
| OVERALL LENGTH (IN) | 24.5" | 25.9" | 29" | ||
| DIAMETER (IN) | 7.4" | 9.4" | |||
features
- Compact high torque manufactured gearbox
- Eaton motor with integrated PRV eliminating the need for bulky valve blocks and reducing potential leak points
- 2 piece shaft design ensuring maximum side load ratings
- 5-yr gearbox warranty, 3-yr motor warranty, and lifetime shaft pull-out warranty
- Made in the USA
