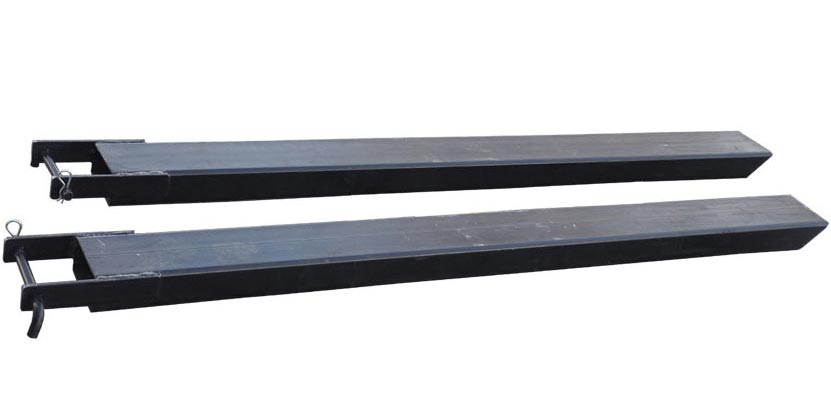

Pallet Fork Extensions | Haugen

Extend the length of your forks with the fork extensions. See minium host fork lengths before ordering. Capacity rating is per pair. Engineered ceritfied.

72" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 48" - CAPACITY RATING IS PER PAIR
MODEL	EXTENSION LENGTH	EXTENSION DIMENSION	FIT TINES UP TO	WEIGHT	CAPACITY
72" - Capacity 3380 lbs	6'	2 1/2" x 5"	2" x 4"	113 lbs	3380 lbs
72" - Capacity 4100 lbs	6'	3" x 6"	2 1/2" x 5"	136 lbs	4100 lbs
72" - Capacity 4350 lbs	6'	3" x 7"	2 1/2" x 6"	151 lbs	4350 lbs

90" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 60" - CAPACITY RATING IS PER PAIR
MODEL	EXTENSION LENGTH	EXTENSION DIMENSION	FIT TINES UP TO	WEIGHT	CAPACITY
90" - Capacity 2900 lbs	7’6”	2 1/2" x 5"	2" x 4"	139 lbs	2900 lbs
90" - Capacity 3520 lbs	7’6”	3" x 6"	2 1/2" x 5"	168 lbs	3520 lbs
90" - Capacity 3980 lbs	7’6”	3" x 7"	2 1/2" x 6"	187 lbs	3980 lbs

96" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 64" - CAPACITY RATING IS PER PAIR
MODEL	EXTENSION LENGTH	EXTENSION DIMENSION	FIT TINES UP TO	WEIGHT	CAPACITY
96" - Capacity 2850 lbs	8'	2 1/2" x 5"	2" x 4"	148 lbs	2850 lbs
96" - Capacity 3450 lbs	8'	3" x 6"	2 1/2" x 5"	179 lbs	3450 lbs
96" - Capacity 3600 lbs	8'	3" x 7"	2 1/2" x 6 "	199 lbs	3600 lbs
96" - Capacity 10150 lbs	8'	4" x 8"	3" x 7"	440 lbs	10150 lbs

108" FORK EXTENSIONS MINIMUM HOST FORK TINE LENGTH REQUIRED IS 72" - CAPACITY RATING IS PER PAIR
MODEL	EXTENSION LENGTH	EXTENSION DIMENSION	FIT TINES UP TO	WEIGHT	CAPACITY
108" - Capacity 2550 lbs	9'	2 1/2" x 5"	2" x 4"	165 lbs	2550 lbs
108" - Capacity 3100 lbs	9'	3" x 6"	2 1/2" x 5"	200 lbs	3100 lbs
108" - Capacity 3450 lbs	9'	3" x 7"	2 1/2" x 6 "	223 lbs	3450 lbs
108" - Capacity 10400 lbs	9'	4" x 8"	3" x 7"	496 lbs	10400 lbs

Full Tube Extension
Pins onto your Fork Tines
OSHA Regulations allow Fork Extensions to be 50% longer than the Fork Tine length
Made in the USA
