POWER RAKE - STANDARD DUTY | BLUE DIAMOND
Product ID:
BD-STND-PR
BD-STND-PR
Availability:
limited quantity available
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends November 15, 2024
$9,913.00$8,921.70
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
DETAILS

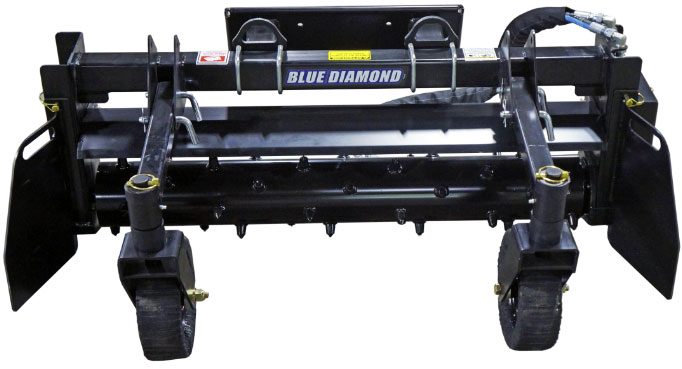

This compact lighter unit is ideal for smaller skid steers and walk-behind machines. Its bolt-on mount enhances flexibility for rental companies and dealers, ensuring the right model for each specific machine. Mounts are available for both mini and full-size skid steer machines, catering to diverse needs.
Model | Work Width (Straight) | Working Width (Angled 10°/20°) | Overall Width (Straight) | Weight |
---|---|---|---|---|
48” w/Fixed Mount | 48" | — | 60" | 550 lbs |
48” w/Manual Angle Mount | 48" | 46"/44" | 60" | 600 lbs |
48” w/Hydraulic Angle Mount | 48" | 46"/44" | 60" | 625 lbs |
60” w/Fixed Mount | 60" | — | 72" | 600 lbs |
60” w/Manual Angle Moun | 60" | 58"/56" | 72" | 650 lbs |
60” w/Hydraulic Angle Mount | 60" | 58"/56" | 72" | 675 lbs |
72” w/Fixed Mount | 72" | — |
84" |
700 lbs |
72” w/Manual Angle Mount | 72" | 70"/68" |
84" |
750 lbs |
72” w/Hydraulic Angle Mount | 72" | 70"/68" |
84" |
775 lbs |
features

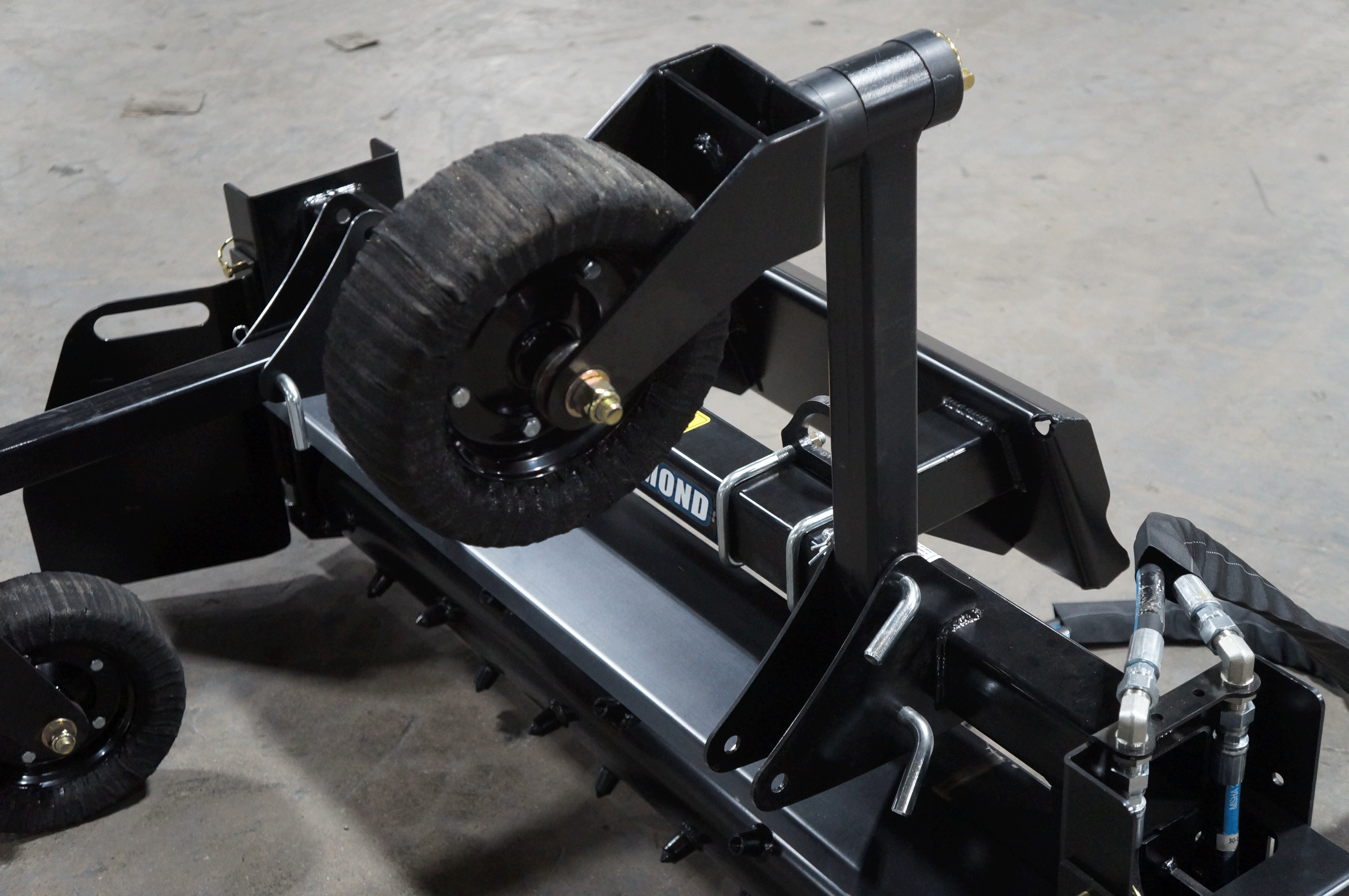

- Flip-up wheels for easy maneuverability
- No-flat airless wheels for hassle-free operation
- Available in drum widths of 48″, 60″, and 72″
- 5/8″ greaseable axles on wheels for smooth rotation
- 7″ diameter drum equipped with 1.5″ teeth for efficient performance
- Overall width extended by 12″ compared to drum width
- 1.25″ spindles with adjustable height for versatility
- Bolt-on mount allows interchangeability with various mini or full-size skid steer mounts

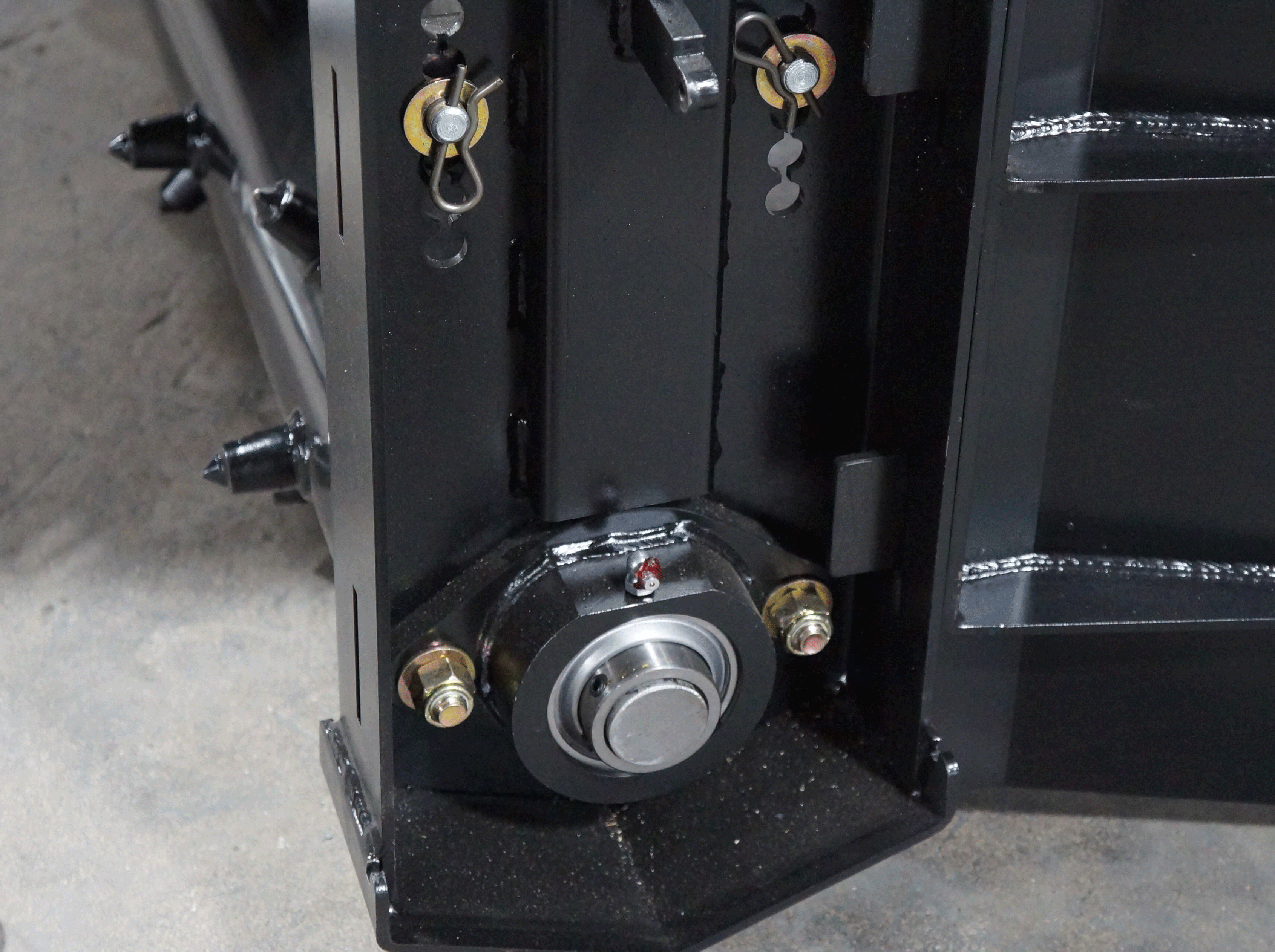

- Drum spindles with 1 3/8″ diameter greaseable bearings for durability
- Fixed carbide teeth for consistent cutting power
- Optional manual or hydraulic angle adjustment for added convenience
