Road Saw | Blue Diamond
BD-RS
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends November 30, 2024
DETAILS

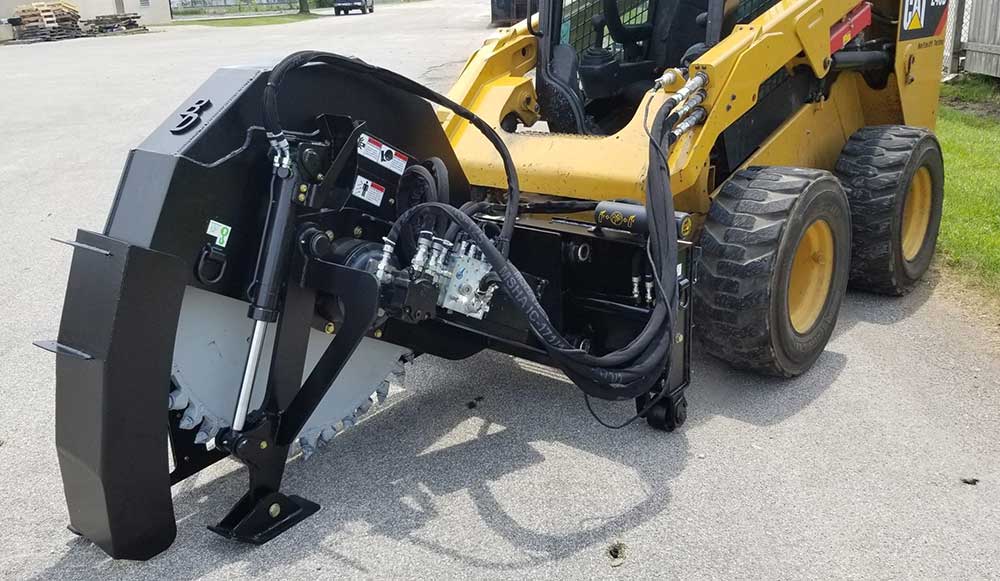

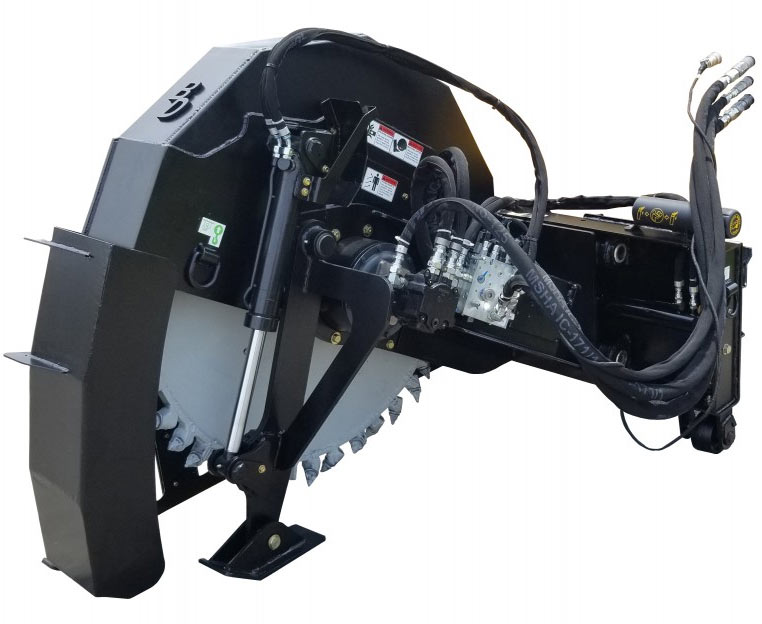

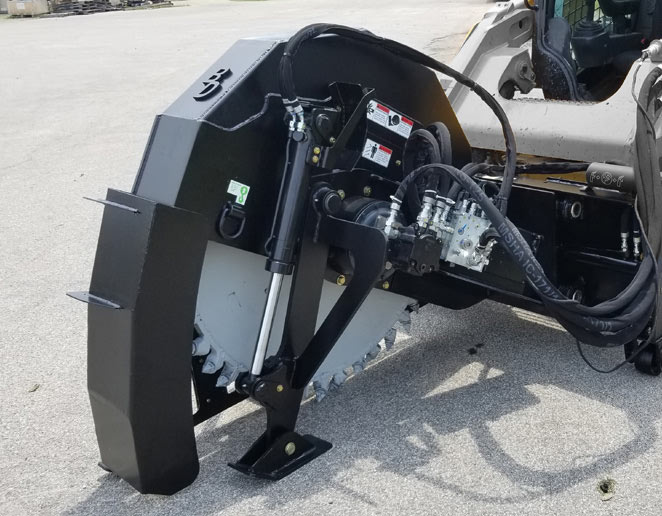

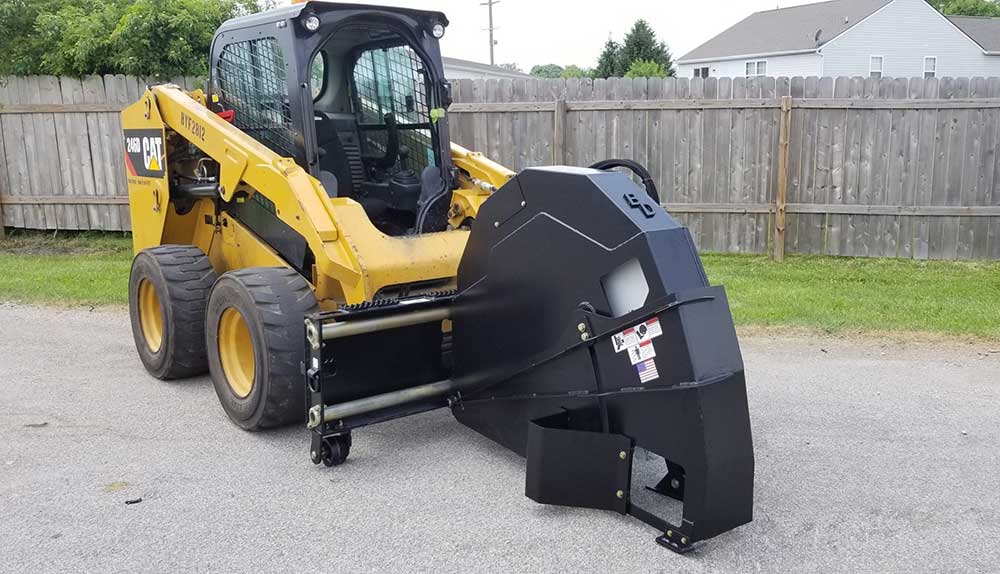

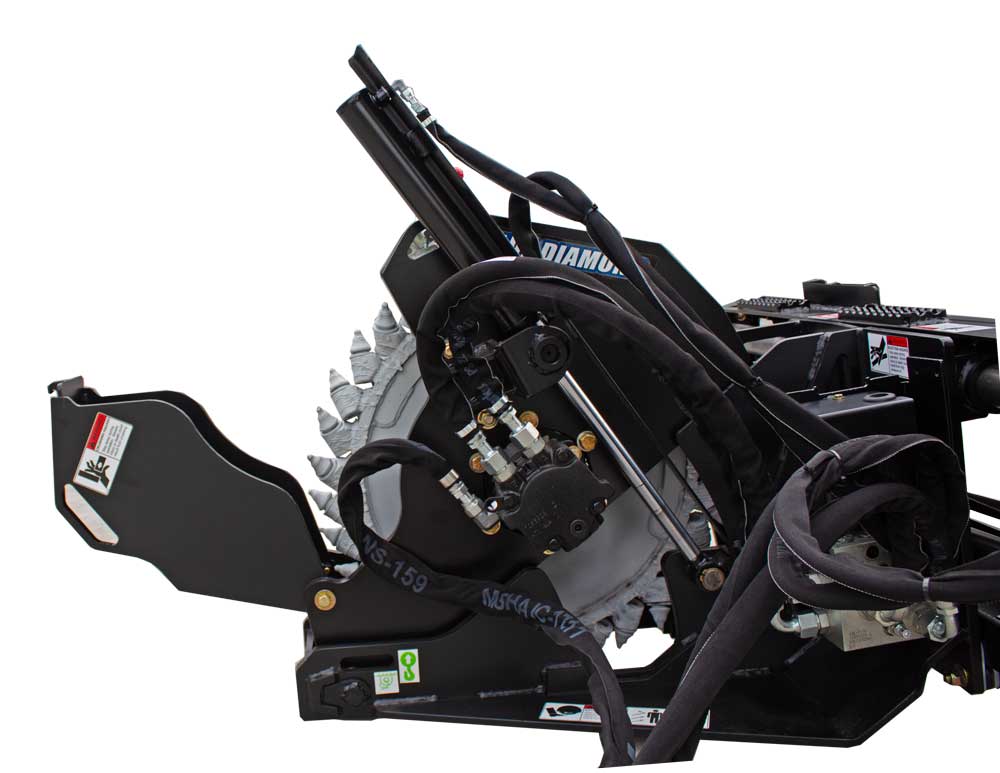

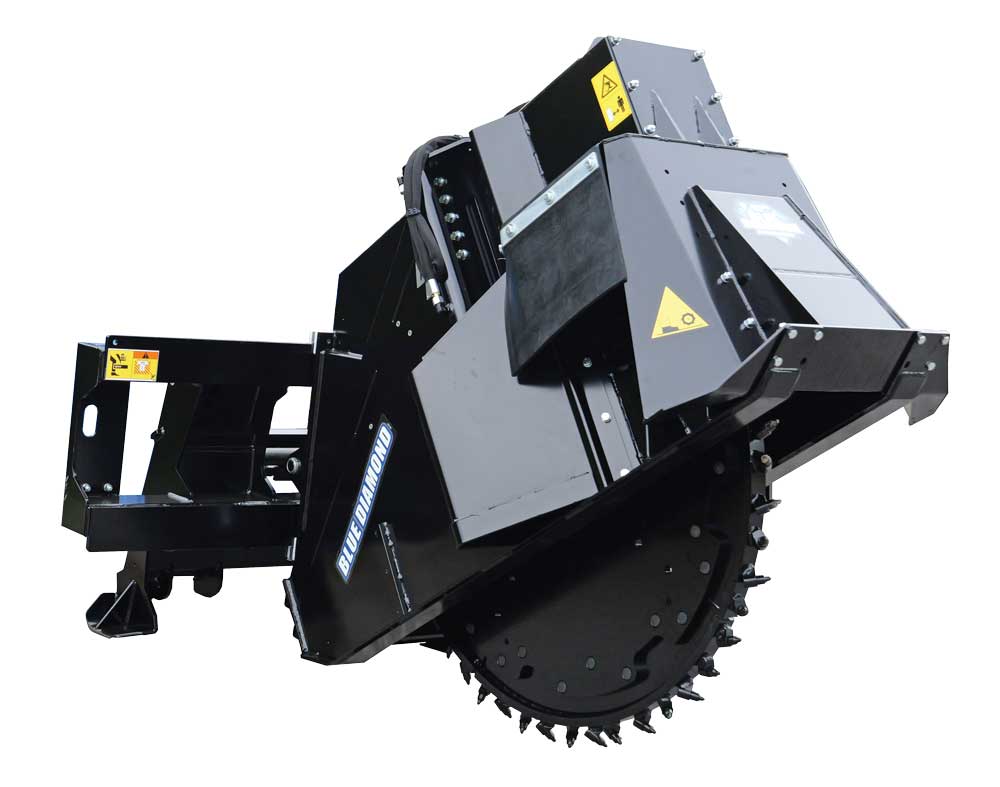

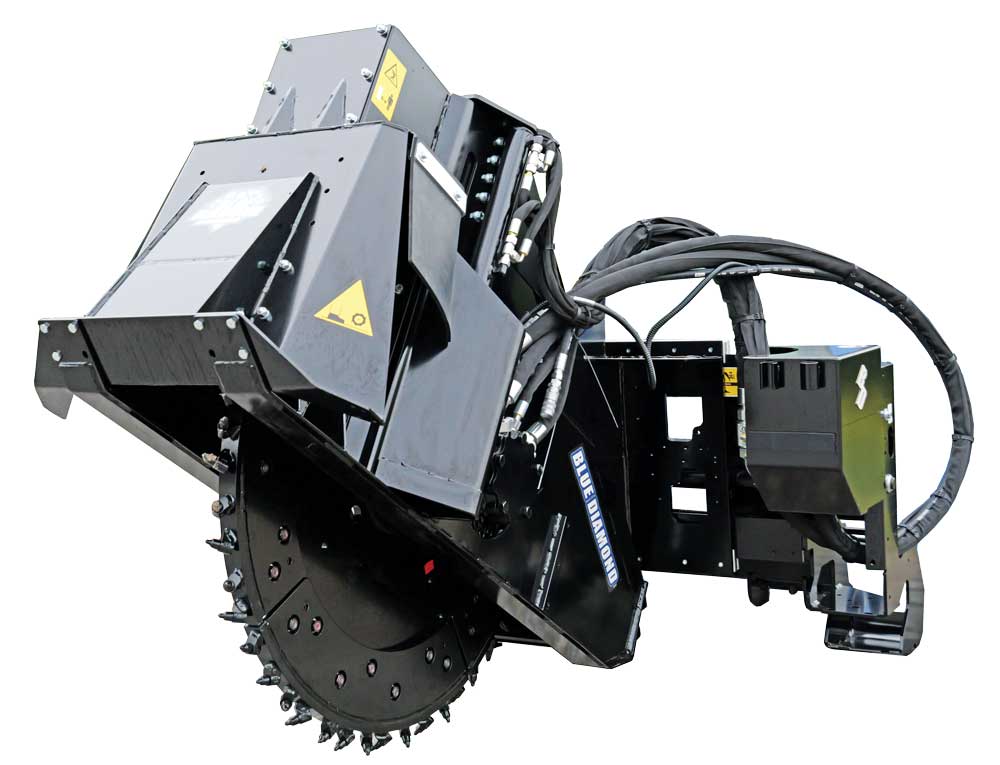

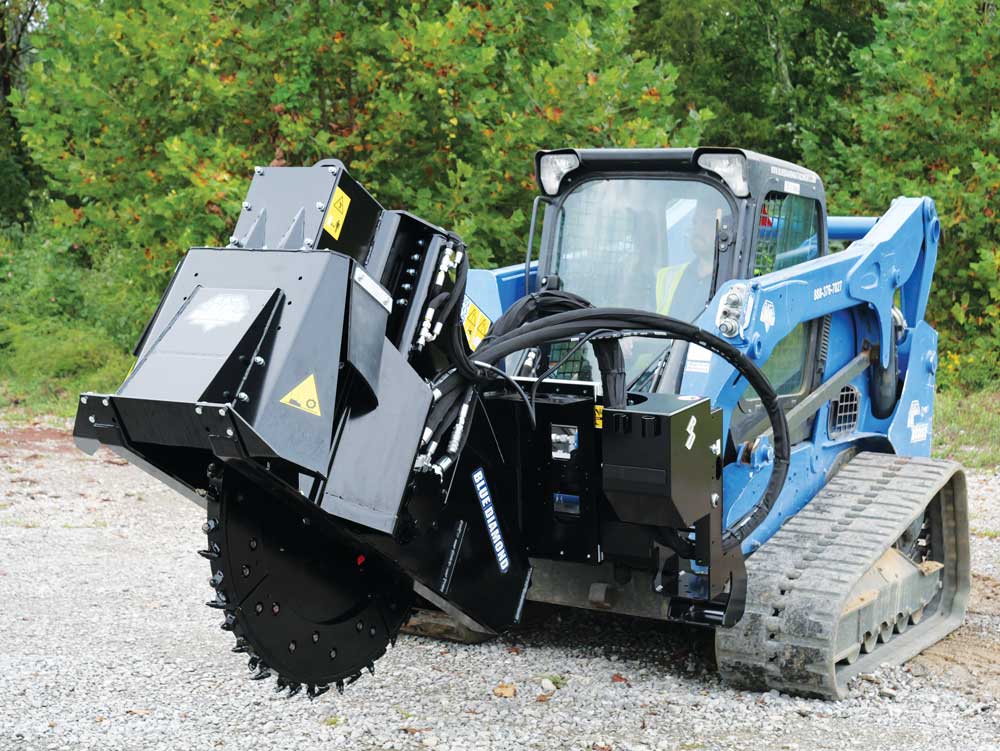

The Blue Diamond® High-Flow Road Saw offers high rates of production at a substantially lower cost of smaller, self-propelled wheel saws. Our High Flow Road Saw for Skid Steers are offered in cutting depths of 0 to 10-inches or 0 to 18-inches. All feature planetary reduction drives, which efficiently provides maximum cutting torque under load.
All saws utilize a ground-engaging frame, which provides an accurate depth of cut control. This means, the frame is in contact with the ground during the cutting operation, and the cutting wheel moves up and down within this frame, giving the operator the ability to maintain control of the cut.
ROAD SAW SPECIFICATIONS
| MODEL | WEIGHT |
|---|---|
| 10" Cut Depth, Road Saw | 1,200 LBS |
| 18" Cut Depth, Road Saw | 2,000 LBS |
CUTTING WHEEL SPECIFICATIONS
| CUTTING WHEEL | WEIGHT |
|---|---|
| 10" Depth x 2.5" Wide Cutting Wheel | 127 LBS |
| 10" Depth x 4.5" Wide Cutting Wheel | 165 LBS |
| 18" Depth x 3" Wide Cutting Wheel | 372 LBS |
| 18" Depth x 4.5" Wide Cutting Wheel | 426 LBS |
| 18" Depth x 6" Wide Cutting Wheel | 481 LBS |
features
- Hydraulic Cutting Depth: 10in Model= 0 to 10 inches; 18in Model= 0 to 18 inches
- Hydraulic Sideshift: 0 to 26 inches
- Available Cutting Wheels: 10in Model= 2.5 & 4.5 inch, 18in Model = 3.0, 4.5 & 6.0- inch
- 10" Model Requires High Flow Hydraulics at a minimum of 27 GPM at 2,750 PSI
- 18" Model Requires High Flow Hydraulics at a minimum of 32 GPM at 3,000 PSI
