Snow Plow V-Blade | Blue Diamond
Product ID:
BD-V-BLD
BD-V-BLD
Availability:
limited quantity available
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends December 31, 2024
$9,387.00$8,448.30
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
Business financing:
DETAILS

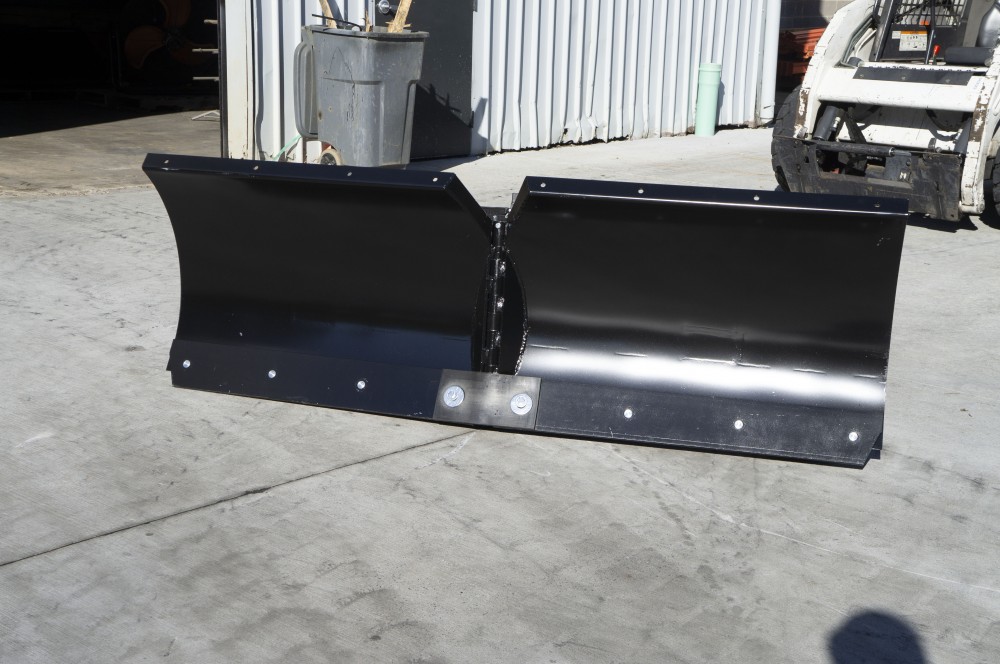

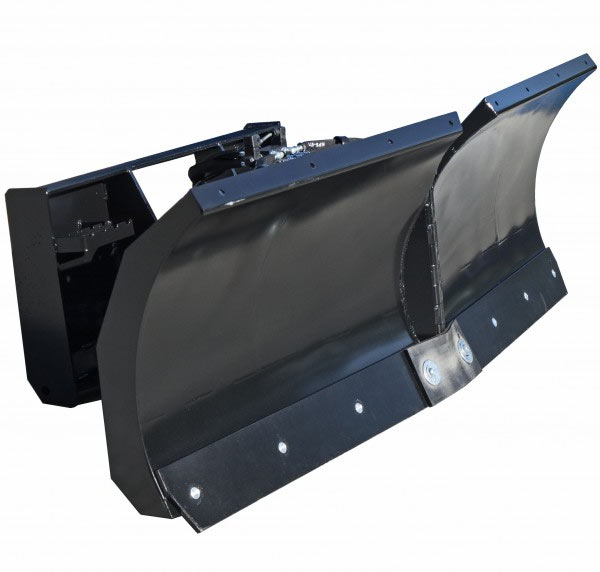

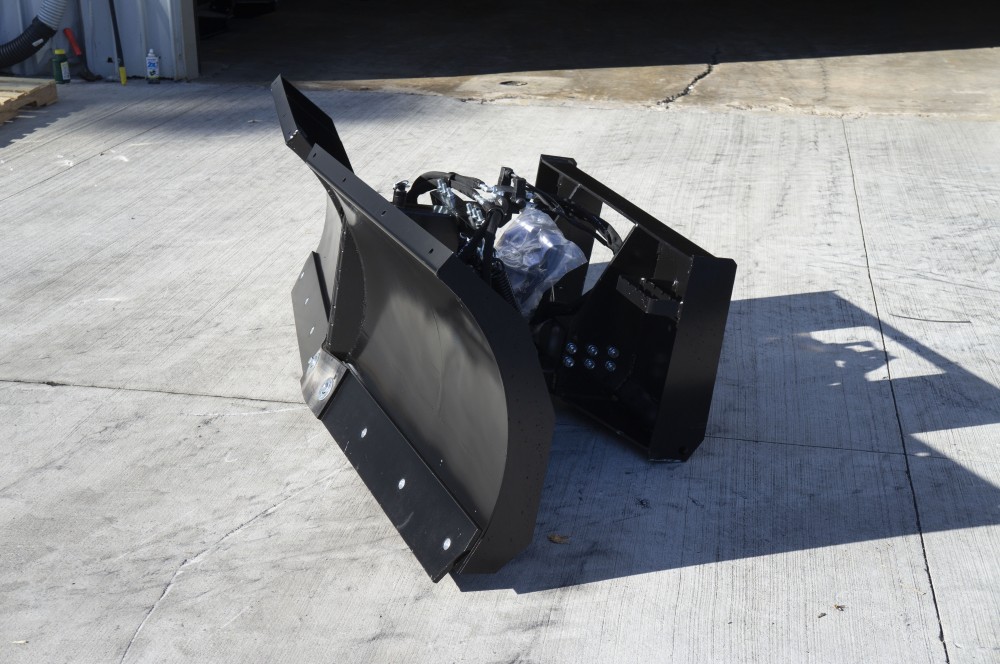

The Heavy Duty Blue Diamond V-Blade is extremely versatile attachment that can be used in many different applications. The primary function of this blade is snow removal and back filling dirt into trenches. This blade can be angled left, right or used straight. The v-function allows snow clearing in application such as sidewalks or walkways. The v-function can also be closed forward into scoop mode to carry snow away from curbs or other edges. The trip feature on this blade can be locked out for use in light grading work or back filling dirt.
| MODEL | V WIDTH | WEIGHT |
|---|---|---|
| 6 ft Without Float | 63.87” | 823 LBS |
| 6 ft With Float | 63.87” | 823 LBS |
| 7 ft Without Float | 78.38” | 863 LBS |
| 7 ft With Float | 78.38” | 863 LBS |
| 8 ft Without Float | 84.87” | 903 LBS |
| 8 ft With Float | 84.87” | 903 LBS |
| 9 ft Without Float | 95.38” | 943 LBS |
| 9 ft With Float | 95.38” | 943 LBS |
| 10 ft Without Float | 106.5" | 985 LBS |
features

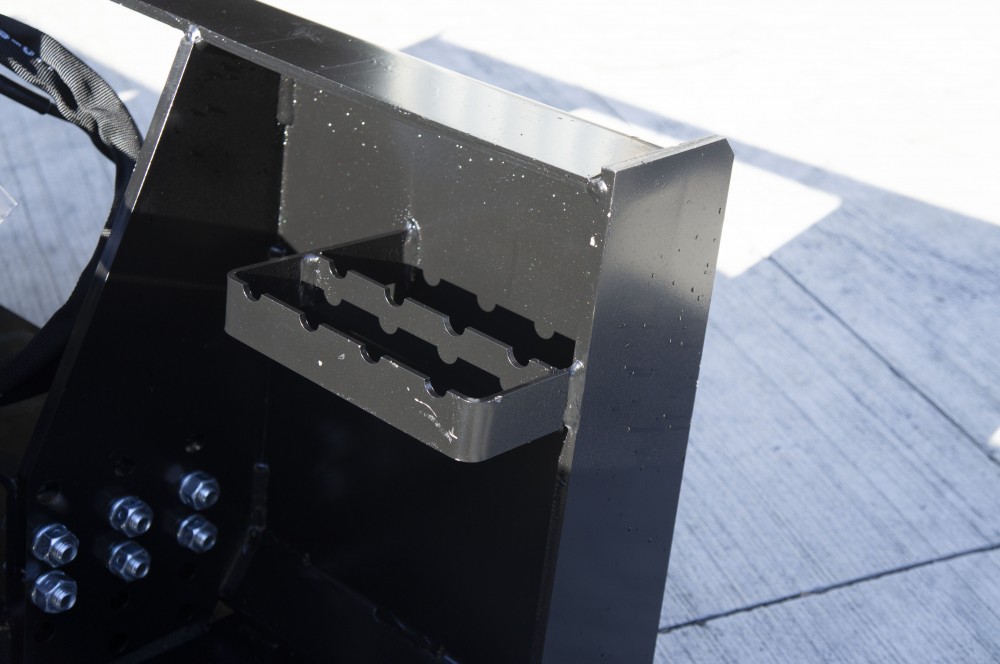

- Universal mount allows for one standard attachment for skid steers and mini skid steers, no need for special hook ups or attachments.

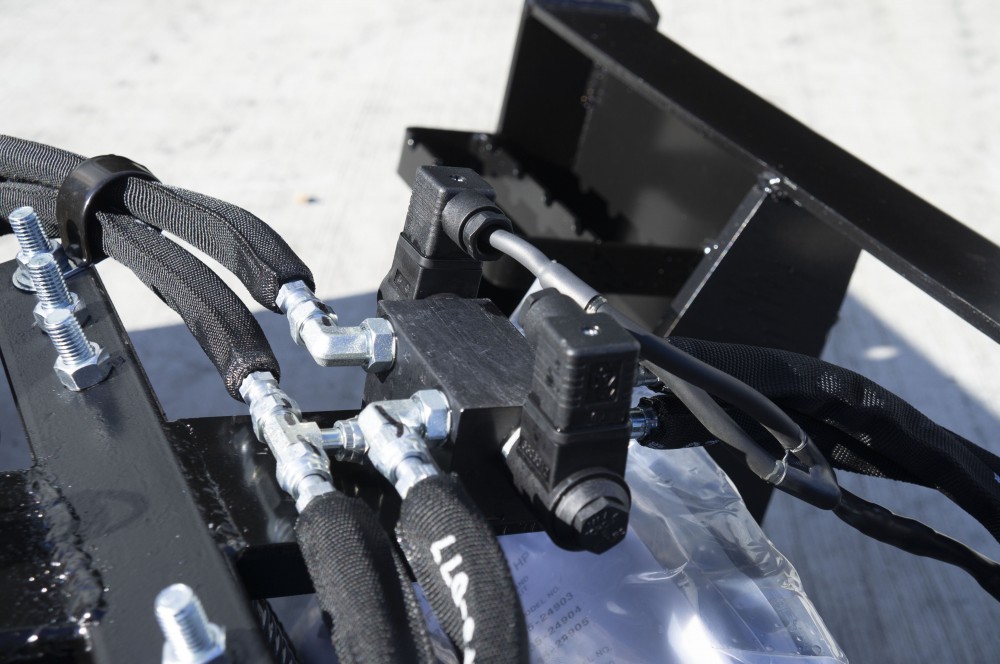

- Electric hydraulic controls - easily control the every angle and tilt of the blade from the comfort of the cab
- Double hydraulic cylinders

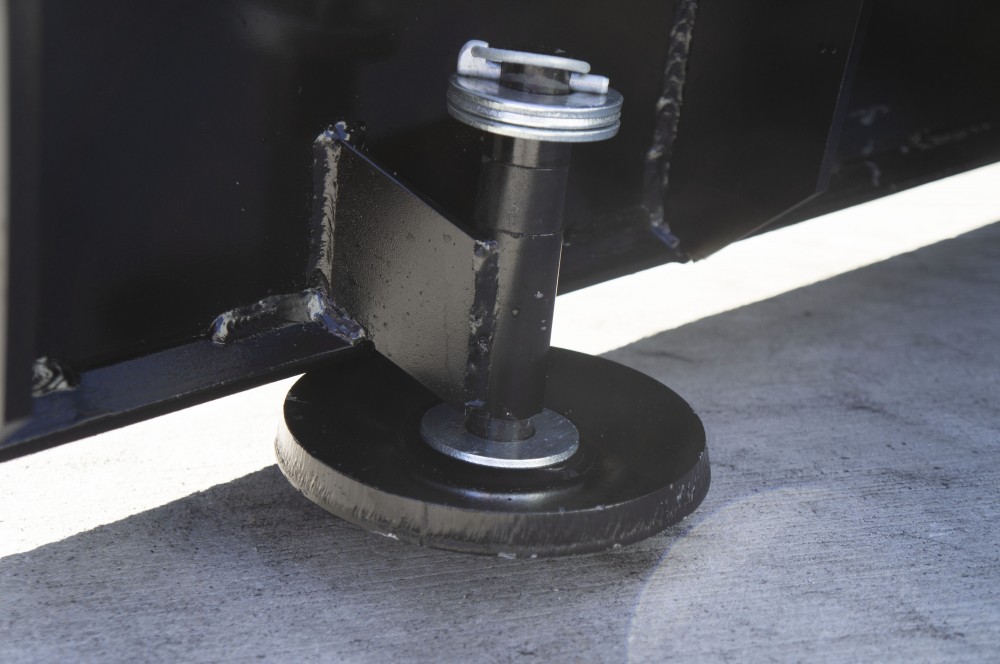

- Adjustable depth guides - easily adjust blade contact with surface
- Available in 6', 7', 8', 9' or 10'
- Available with or without float

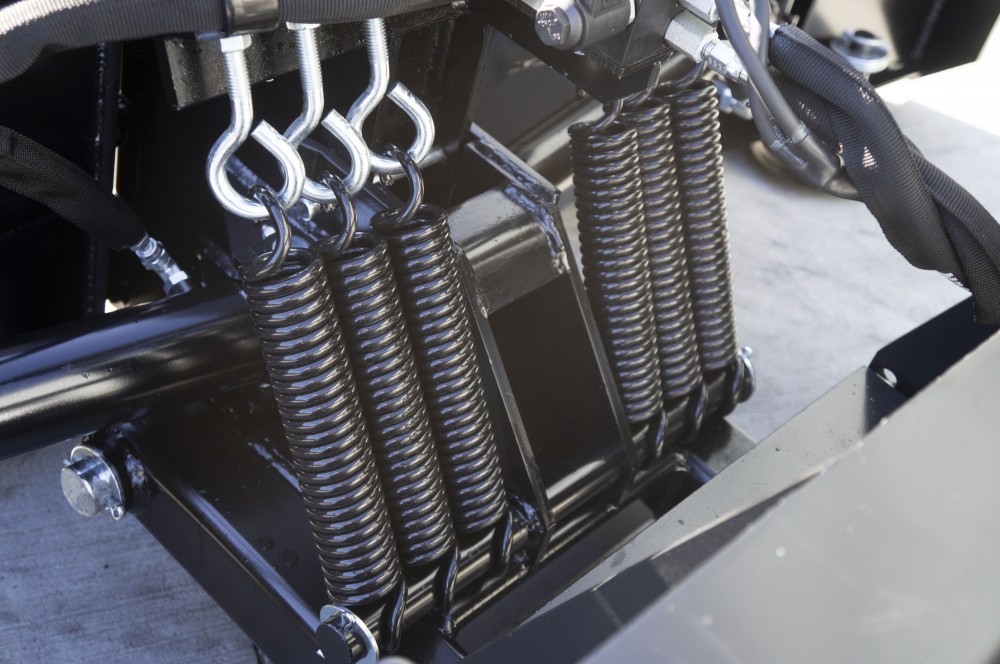

- Lock-out trip function
