Tractor Spindle Cutter - Pull Type - Heavy Duty | Blue Diamond
BD-TR-CTR-HD-PT
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends December 31, 2024
DETAILS

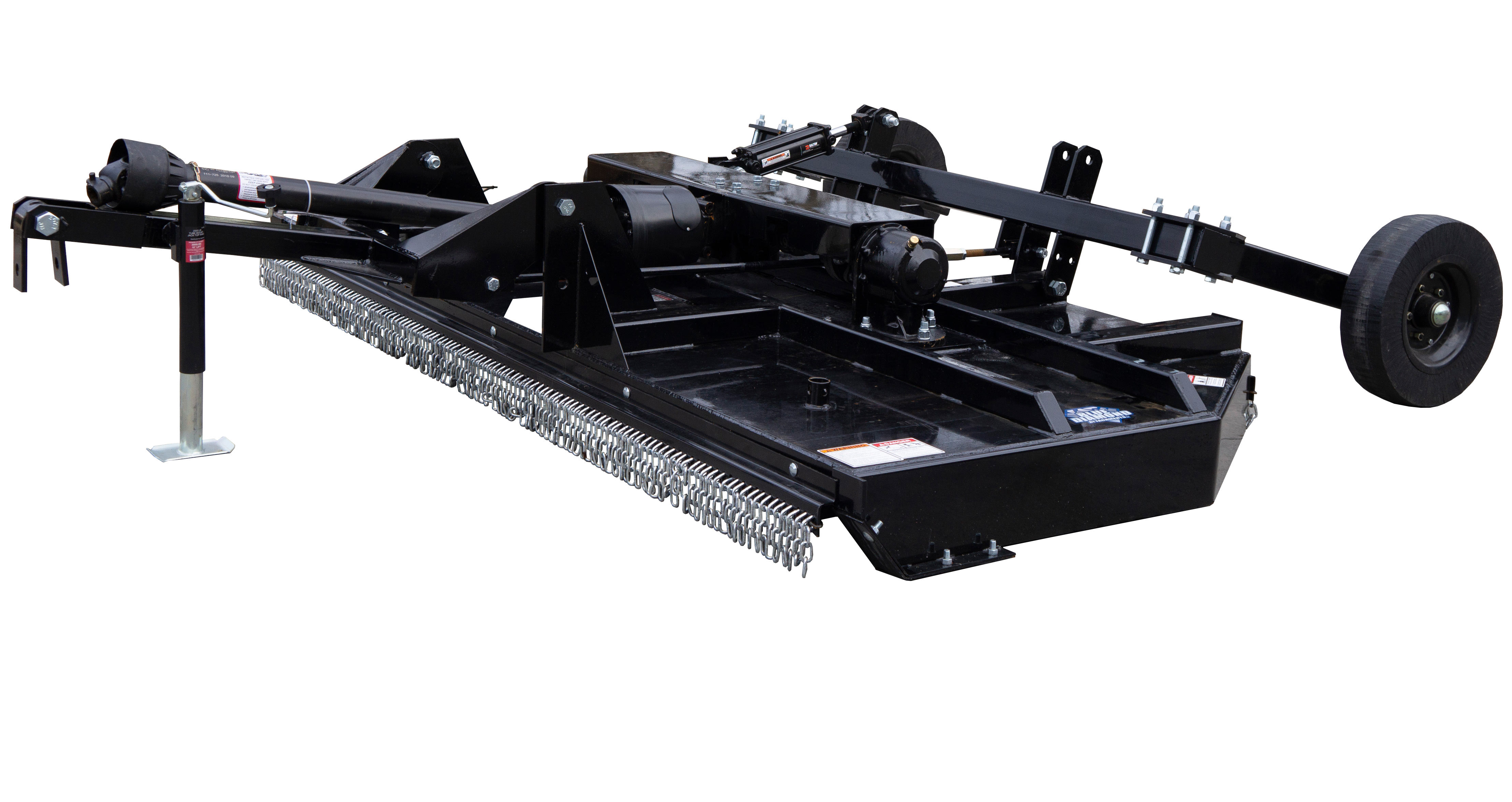

The Blue Diamod® Heavy-Duty Dual Spindle Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with minimum 42 hp or 52 hp tractors and are available in 8’ and 10” widths. The cutter uses dual spindles with two free-swinging blades each, which reduces the shock of impact when a stationary object is contacted. A slip clutch and dual shock couplers protect the gearboxes and drivelines from damage. These come standard with driveline shields and clutch shields along with front and rear chain discharge shields.
MODEL | 8' HEAVY DUTY PULL TYPE CUTTER |
10' HEAVY DUTY PULL TYPE CUTTER |
---|---|---|
MINIMUM HORSEPOWER | 42 HP | 52 HP |
CUTTING WIDTH | 96” | 120” |
TRANSPORT WIDTH | 98” | 122” |
HITCH | Pull Type | |
CUTTING HEIGHT | 2”-10” | |
MAX CUTTING CAPACITY | 3” | |
DECK THICKNESS | 10 GA | |
SIDE BANDS | 8” | |
PTO DRIVE SHAFT | Series 6 w/Slip Clutch | |
CENTER DRIVE SHAFT | Shock Coupler Protected | |
STUMP JUMPER | 5/8” Plate | |
CENTER GEARBOX | 125 hp | |
OUTBOX GEARBOXES | 100 hp | |
WHEEL | Laminated | |
HUB | Bearings | |
WEIGHT | 1575 LBS | 1705 LBS |
SKID SHOES | Replaceable | |
GEARBOX WARRANTY | 5 yr limited | |
CHAIN GUARDS | Standard |
features
- Pull type hitch with hydraulic rear wheels
- 3” diameter cutting capacity
- Slip clutch protection, dual shock couplers and front/rear chain discharge shields come standard
- Laminated flat-proof wheels
- 2-year warranty
- 5-year limited gearbox warranty
- Made in the USA
