Vibratory Roller | Blue Diamond
Product ID:
BD-VIB-RLR
BD-VIB-RLR
Availability:
limited quantity available
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends December 31, 2024
$26,121.00$23,508.90
Questions?Call 866-315-3134 - Se Hable Espanol
Business financing:
DETAILS

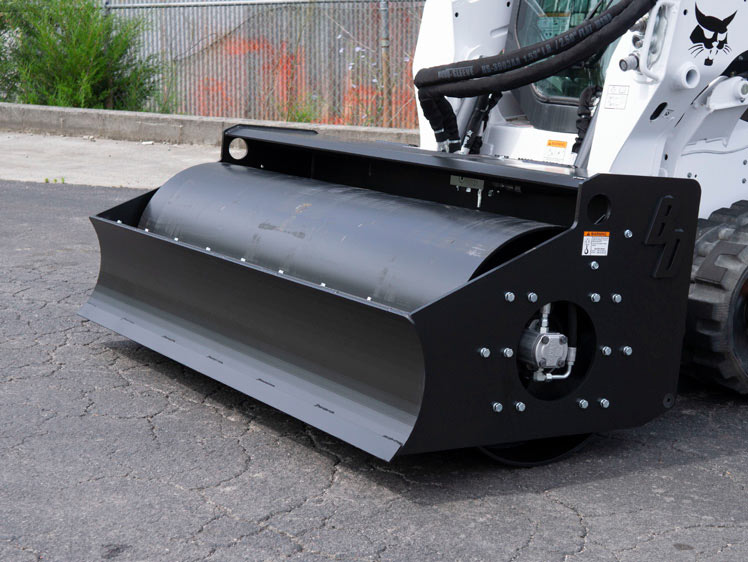

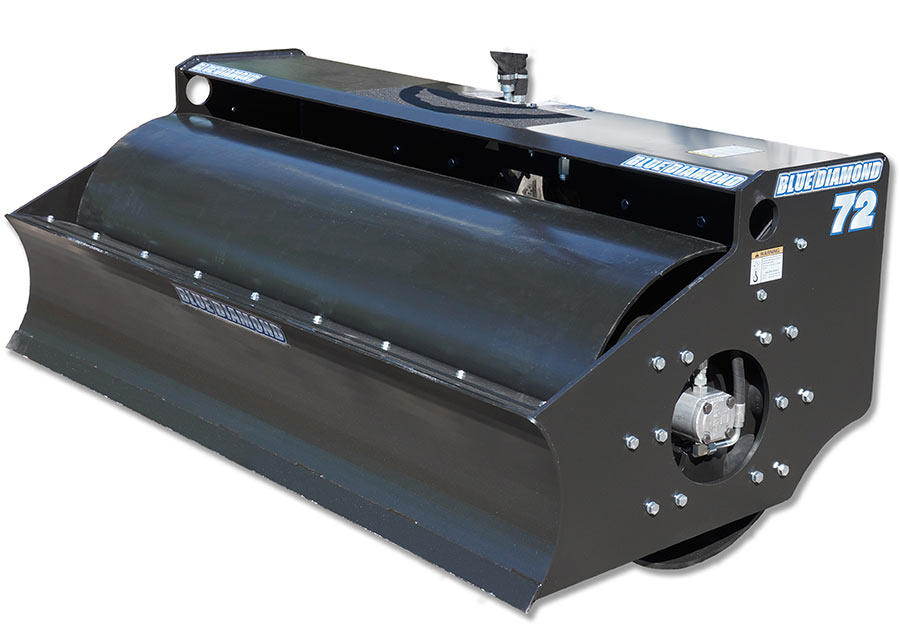

The Vibratory Roller is available in 4 different models. These models either come in 72-inch or 84-inch widths and are available in smooth or pad foot drum options. All models come standard with a universal quick-tach mount. These rollers are very low maintenance machines. This roller has a hydraulically powered exciter systems that are lubricated by an oil mist design. This roller comes standard with a knockdown blade. This unit has a lower operating temperature and has the industry's lowest rate of bearing and seal failures.
| MODEL | 73” Smooth | 73” Pad Foot | 84" Smooth | 84" Pad Foot |
|---|---|---|---|---|
| LENGTH | 43.3" | 43.3" | 43.3" | 43.3" |
| HEIGHT | 29" | 30" | 29" | 30" |
| WEIGHT | 2,050 lbs | 2,210 lbs | 2,300 lbs | 2,450 lbs |
| EXCITER SPEED | 3,000 rpm | 3,000 rpm | 3,000 rpm | 3,000 rpm |
| CENTRIFUGAL FORCE | 8,850 lbs | 8,850 lbs | 9,765 lbs | 9,765 lbs |
| DRUM DIAMETER | 24" | 26 3/4" | 24" | 26 3/4" |
| FLOW REQUIREMENTS | 10-50 gpm | 10-50 gpm | 10-50 gpm | 10-50 gpm |
| PRESSURE REQUIREMENTS | 1,500 - 3,000 psi | 1,500 - 3,000 psi | 1,500 - 3,000 psi | 1,500 - 3,000 psi |
| HYDRAULIC CONNECTION | ½" Flat Face | ½" Flat Face | ½" Flat Face | ½" Flat Face |
features
- Industry leading bearing design
- Integral knockdown blade
- Smooth and pad foot models
- Minimize exciter shaft detection
- Vibrating drums are isolated from the frame to help minimize vibration to the skid loader
- Minimum Gallons Per Minute Needed: 16 GPM
- Warranty: 1 year
- Made in the USA
