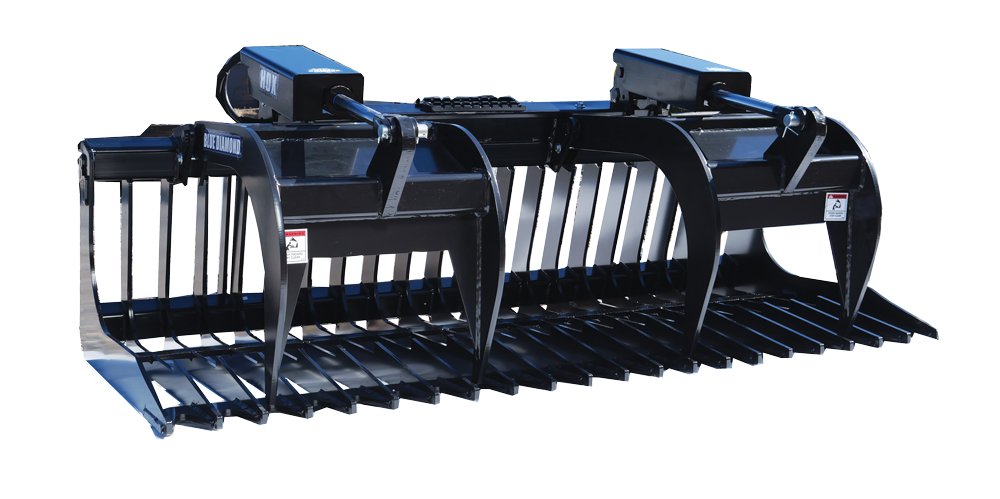

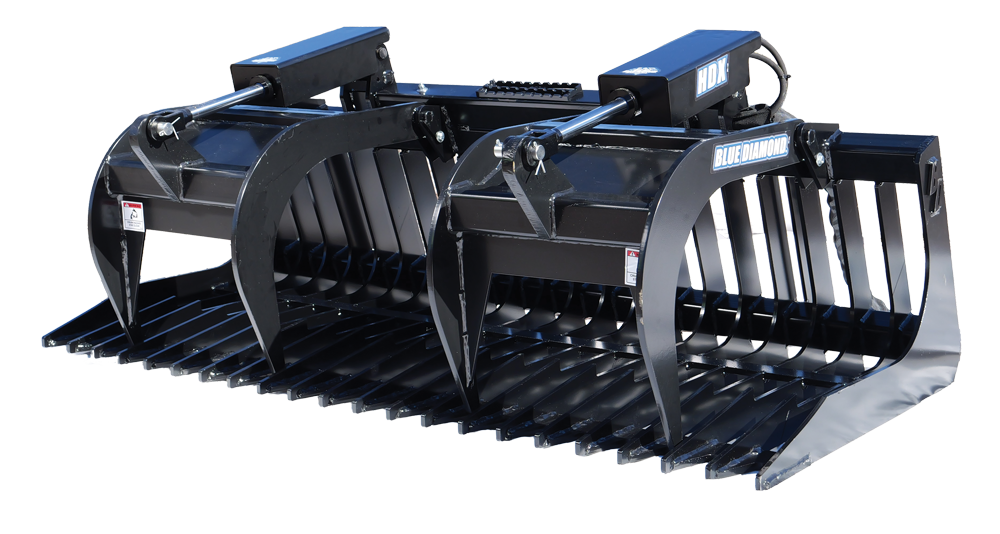

HDX Rock Grapple Bucket | Blue Diamond
108348
limited quantity available
Free shipping
-10%Sale ends April 15, 2026
DETAILS
If you’re looking for a Blue Diamond HDX rock grapple bucket for sale that can handle real jobsite abuse without slowing you down, this attachment is built for exactly that. The HDX series is designed as a true heavy-duty solution for operators who need strength, control, and material separation in one tool—without stepping up into oversized, overkill equipment.
The Blue Diamond HDX Rock Grapple Bucket is ideal for contractors, farmers, landscapers, and property owners running skid steers or compact track loaders (CTLs) up to 75 horsepower. Whether you’re cleaning up a site, clearing land, or handling rock and debris, this attachment delivers consistent performance with a focus on durability and long-term reliability.
Specifications
| Feature | Specifications |
|---|---|
| Width | 72" |
| Depth | 39" |
| Clamp Opening | 32" |
| Weight | 700 lbs |
| Tine Spacing | 3" |
| Machine Size | Up to 75 HP |
What This Attachment Does on the Job
A rock grapple bucket is built to grab, sort, and move material efficiently, and the HDX model takes that capability to the next level. The 3-inch tine spacing allows dirt and smaller material to fall through while retaining larger debris, helping you separate usable material from waste in fewer passes.
On a real jobsite, that means:
- Faster cleanup after land clearing or demolition
- Less time spent screening material manually
- Better control when handling irregular loads like rocks, logs, or brush

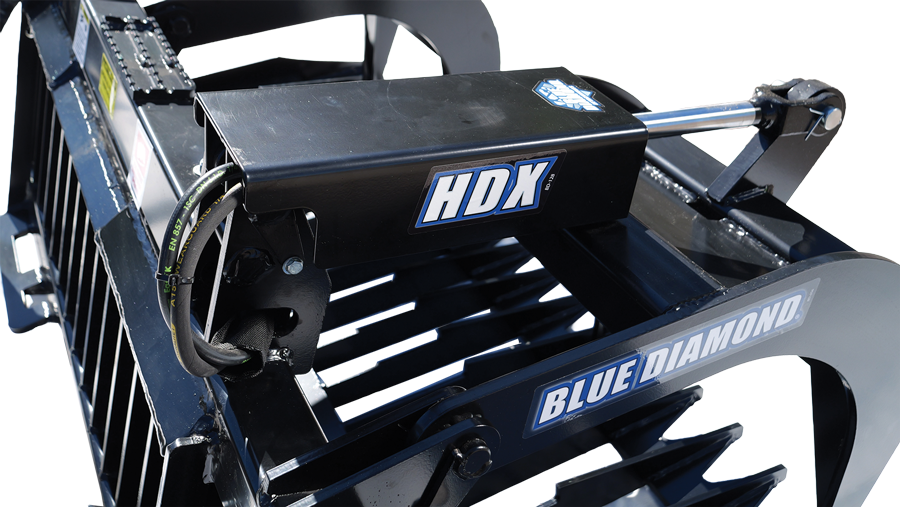

The dual top clamps provide a secure grip across uneven loads, allowing you to pick, hold, and transport material with confidence. Whether you’re loading trucks, stacking debris, or clearing fence lines, this attachment gives you the versatility to handle multiple tasks without switching tools.
For machines in the 75 HP and under range, this grapple is sized right—heavy-duty where it counts, without overloading your machine’s capacity.
features
- 3” Tine Spacing
Allows dirt and small debris to fall through while retaining larger material, improving efficiency when sorting rocks, brush, and debris. - Dual Top Clamps with 32” Opening
Provides even clamping force across the bucket, making it easier to secure uneven or bulky loads like logs and broken concrete. - 1/2” Steel Construction
Built from thick, high-strength steel for long-term durability in demanding applications like land clearing and site cleanup. - Fully Welded Hydraulic Cylinders
Designed for reliability and protection in harsh environments, reducing the risk of downtime due to cylinder failure. - Reinforced Gussets & Structural Protection
Adds strength in high-stress areas, helping the attachment withstand heavy loads and repeated use. - Standard Flow Hydraulic Operation
Runs on standard flow systems, making it compatible with a wide range of skid steers and CTLs without requiring high-flow upgrades. - Made in the USA
Manufactured with consistent quality control and readily available replacement parts. - 1-Year Manufacturer Warranty
Backed by Blue Diamond Attachments for added peace of mind.
